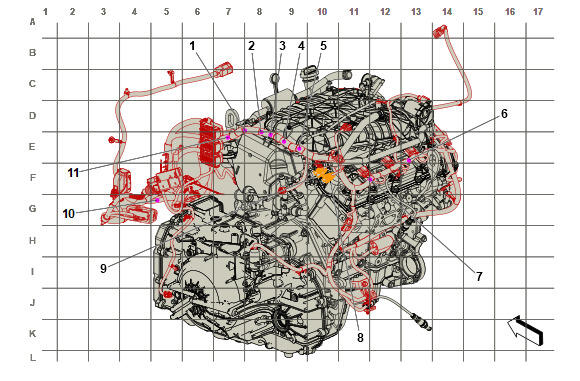

Engine Harness Routing - Left Rear
Engine Harness Routing - Left Rear
| Harness Name | Callout |
|---|---|
| J116 Engine Harness | 1 |
| J123 Engine Harness | 2 |
| J104 Engine Harness (UGN) | 3 |
| J127 Engine Harness | 4 |
| J128 Engine Harness | 5 |
| J124 Engine Harness | 6 |
| J126 Engine Harness | 7 |
| X160 Engine Harness to Fuel Injector Harness X160 Engine Harness to Fuel Injector Harness | 8 |
| X161 Engine Harness to Fuel Injector Harness (LFY) X161 Engine Harness to Fuel Injector Harness | 9 |
| J131 Engine Harness | 10 |
| J120 Engine Harness | 11 |
