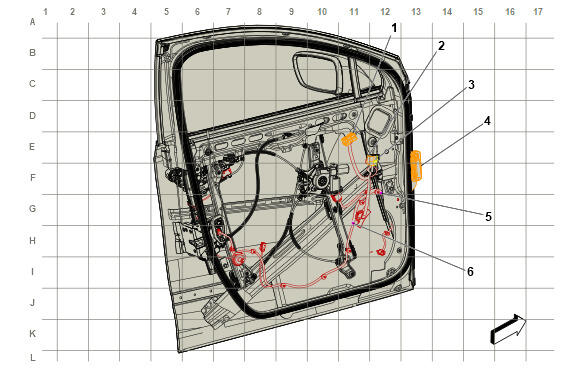

Driver Door Harness Routing
Driver Door Harness Routing
| Harness Name | Callout |
|---|---|
| X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness | 1 |
| X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness (-A45-AAB) | 2 |
| X511 Driver Door Harness to Sideview Camera - Left Harness X511 Driver Door Harness to Sideview Camera - Left Harness | 3 |
| X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness | 4 |
| J501 Driver Door Harness | 5 |
| J500 Driver Door Harness | 6 |
