Center Console Harness Routing

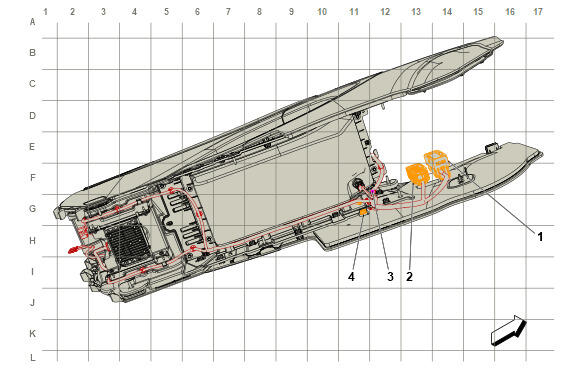

GM4732469Courtesy of GENERAL MOTORS COMPANY
Center Console Harness Routing

Harness Name Callout
X231 Floor Console Harness to Body Harness X231 Floor Console Harness to Body Harness 1
X234 Floor Console Harness to Instrument Panel Harness X234 Floor Console Harness to Instrument Panel Harness 2
J338 Console Harness 3
X236 Floor Console Harness to Instrument Panel Harness X236 Floor Console Harness to Instrument Panel Harness 4
