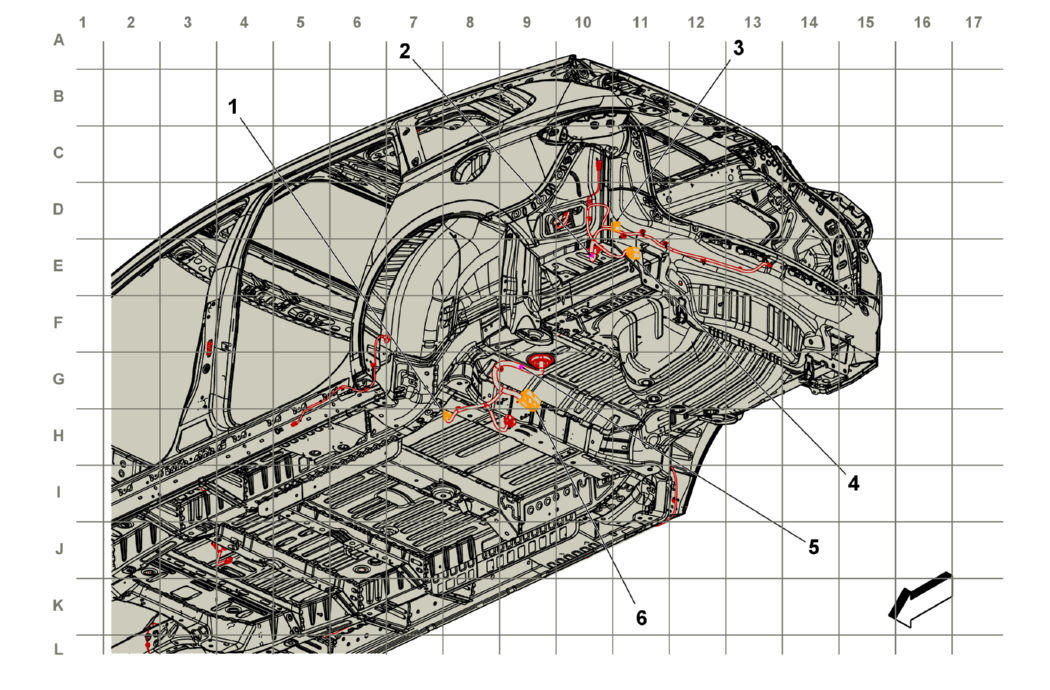

Body harness Routing - Rear Exterior
Body harness Routing - Rear Exterior
| Harness Name | Callout |
|---|---|
| X350 Body Harness to Fuel Tank Harness X350 Body Harness to Fuel Tank Harness | 1 |
| J413 Body Harness (V92) | 2 |
| X400 Body Harness to Rear Fascia Harness X400 Body Harness to Rear Fascia Harness | 3 |
| X411 Trailer Harness to Body Harness X411 Trailer Harness to Body Harness | 4 |
| J402 Body Harness | 5 |
| X409 Body Harness to Chassis Harness X409 Body Harness to Chassis Harness | 6 |
