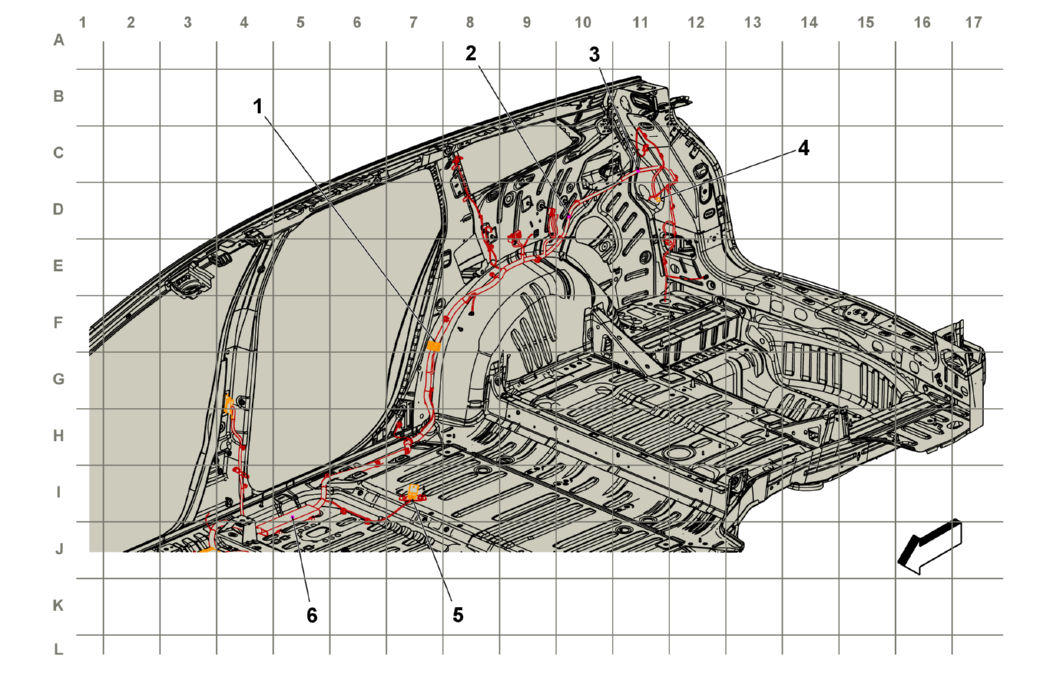

Body Harness Routing - Right Rear Passenger Compartment
Body Harness Routing - Right Rear Passenger Compartment
| Harness Name | Callout |
|---|---|
| JX304 Body Harness JX304 Splice Pack | 1 |
| J213 Body Harness | 2 |
| J326 Body Harness | 3 |
| X306 Body Harness to HVAC Harness X306 Body Harness to HVAC Harness | 4 |
| X304 Rear Seat - Right Harness to Body Harness (KA6) X304 Rear Seat - Right Harness to Body Harness (KA6) | 5 |
| J327 Body Harness | 6 |
