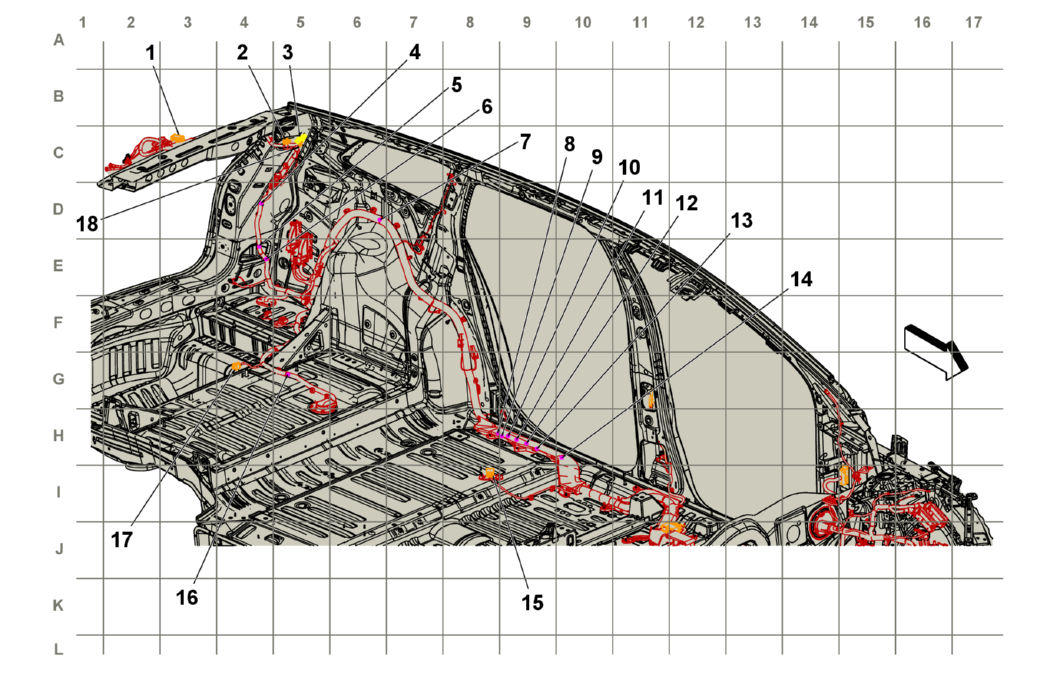

Body Harness Routing - Left Rear Passenger Compartment
| Items |
|---|
| 1. X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness |
| 2. X906 Body Harness to Liftgate Harness X906 Body Harness to Liftgate Harness (UV2) , or X906 Body Harness to Liftgate Harness (UVB) . |
| 3. X305 Body Harness to Headliner Harness X305 Body Harness to Headliner Harness |
| 4. J112 Body Harness (UGN) |
| 5. J333 Body Harness |
| 6. J328 Body Harness (UGN or UEU) |
| 7. J350 Body Harness (AQ5) |
| 8. J325 Body Harness |
| 9. J322 Body Harness (KA6) |
| 10. J345 Body Harness (C3U) |
| 11. J317 Body Harness |
| 12. J320 Body Harness |
| 13. J348 Body Harness |
| 14. X303 Rear Seat - Left Harness to Body Harness (KA6) X303 Rear Seat - Left Harness to Body Harness (KA6) |
| 15. J323 Body Harness |
| 16. X340 Body Harness to 3rd Row Seat Harness (AS8) X340 Body to 3rd Row Seat |
| 17. X307 Headliner Harness to Body Harness (DRZ) X307 Headliner Harness to Body Harness |
