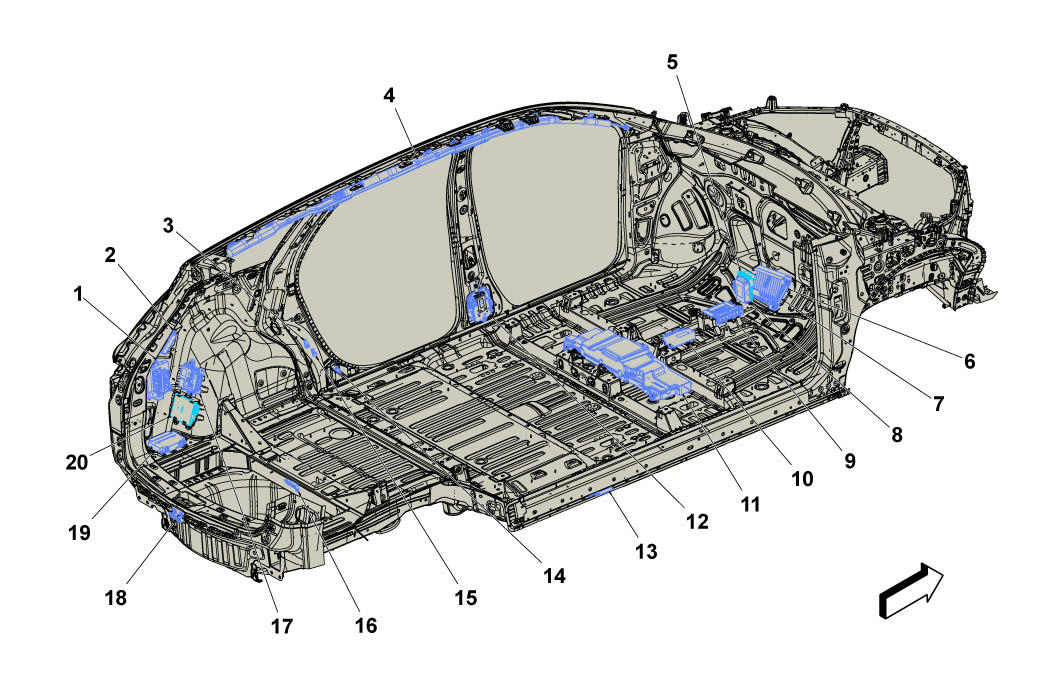

Left Side and Center of Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Left Side and Center of Passenger Compartment Components

Components
1. X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X1 , or X53A Fuse Block - Rear Body X2 , or X53A Fuse Block - Rear Body X3
2. K39 Liftgate Control Module K39 Liftgate Control Module X1 , or K39 Liftgate Control Module X2 , or K39 Liftgate Control Module X3 .
3. R6E Terminating Resistor - High Speed Extension Bus 1 R6E Terminating Resistor - High Speed Extension Bus 1
4. F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
5. K38 Chassis Control Module (M3W) K38 Chassis Control Module (M3W)
6. T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 , or T3 Audio Amplifier X2 , or T3 Audio Amplifier X3 , or T3 Audio Amplifier X4 .
7. K108 Active Noise Cancellation Module K108 Active Noise Cancellation Module X1 , or K108 Active Noise Cancellation Module X2 , or K108 Active Noise Cancellation Module X3 .
8. T19 Power Supply Transformer T19 Power Supply Transformer
9. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 .
10. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 .
11. P19AC Speaker - Subwoofer P19AC Speaker - Subwoofer (UQA)
12. F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
13. T10R Keyless Entry Antenna - Right Body T10R Keyless Entry Antenna - Right Body
14. B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear
15. R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus
16. T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment
17. K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 , or K84 Keyless Entry Control Module X2 .
18. T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia
19. K157 Video Processing Control Module K157 Video Processing Control Module X1 , or K157 Video Processing Control Module X3 , or K157 Video Processing Control Module X4 , or K157 Video Processing Control Module X5 .
20. K19 Suspension Control Module K19 Suspension Control Module (F45)
