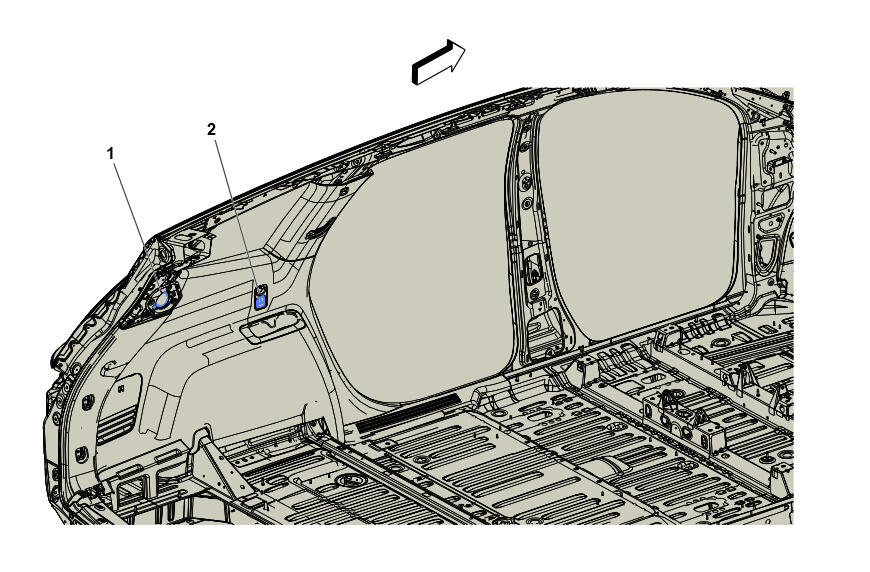

Left Rear Trim Panel Components

GM4739153Courtesy of GENERAL MOTORS COMPANY
Left Rear Trim Panel Components

Component Name Callout
P19AN Speaker - Left Rear Trim Panel P19AN Speaker - Left Rear Trim Panel 1
X92RL USB Receptacle - Rear Compartment Left X92RL USB Receptacle - Rear Compartment Left 2
