Instrument Panel Knee Bolster Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

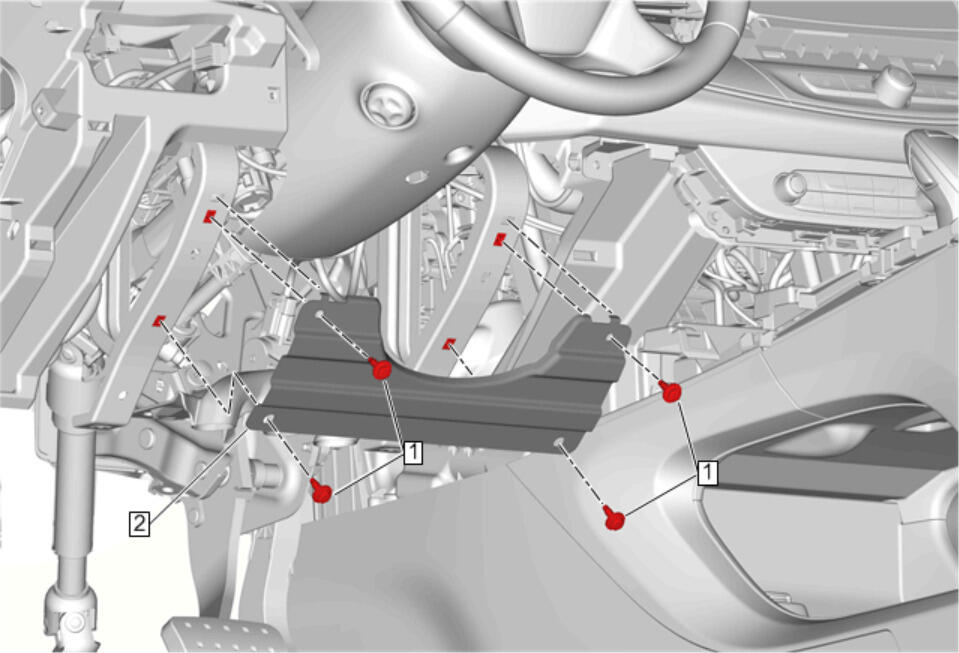

Callout	Component Name
Preliminary Procedure  Instrument Panel Knee Bolster Replacement
1	Instrument Panel Knee Bolster Bracket Bolt [ 4x ] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb/in)
2	Instrument Panel Knee Bolster Bracket
