Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

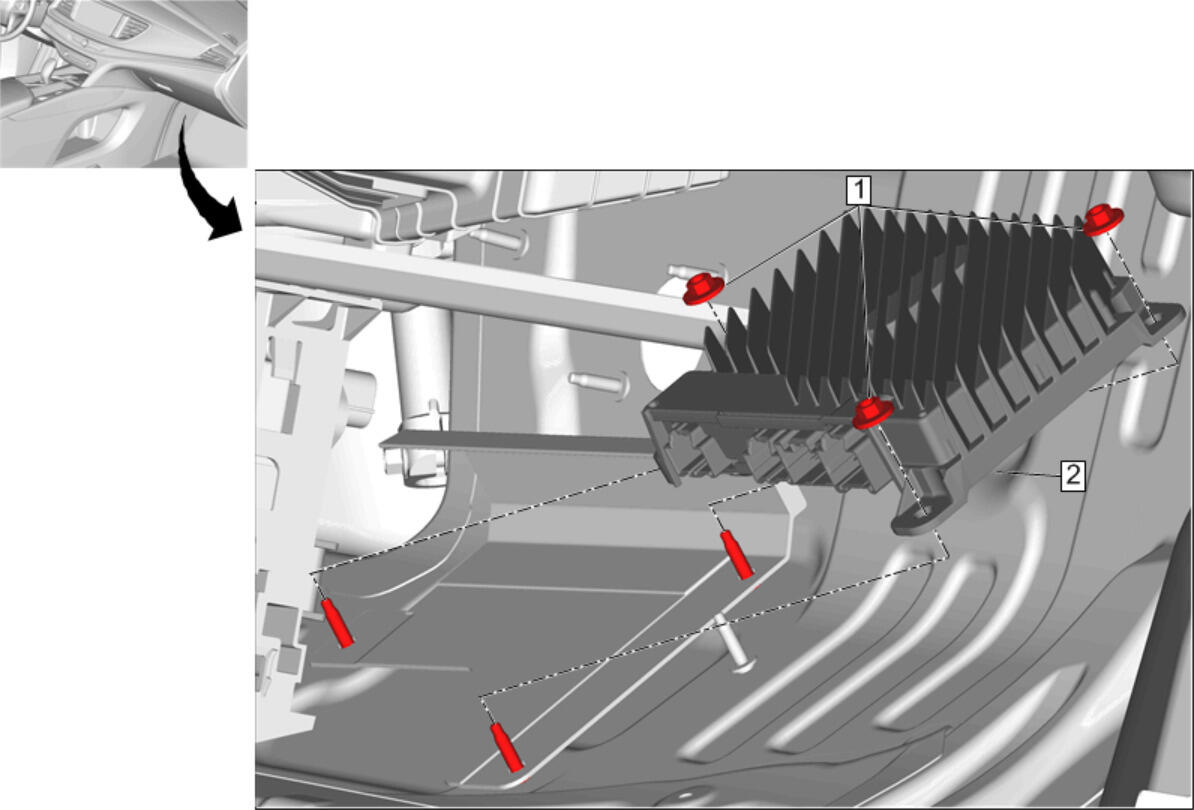

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut [ 3x ] CAUTION: Fastener Caution Tighten 6 N.m (53 lb/in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedures

Radio Speaker Amplifier Nut [ 3x ]

CAUTION:

Tighten
6 N.m (53 lb/in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
