Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

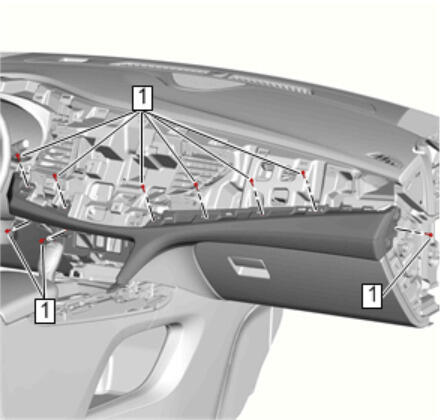

Instrument Panel Trim Pad (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Trim Pad Bolt (1) - Install and tighten [ 9x ] 2.5 N.m (22 lb/in)
Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
