Installation Procedure

  1. GM4820855Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace - Right Side (2) - Install

  2. Connect the electrical connectors.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb-ft)

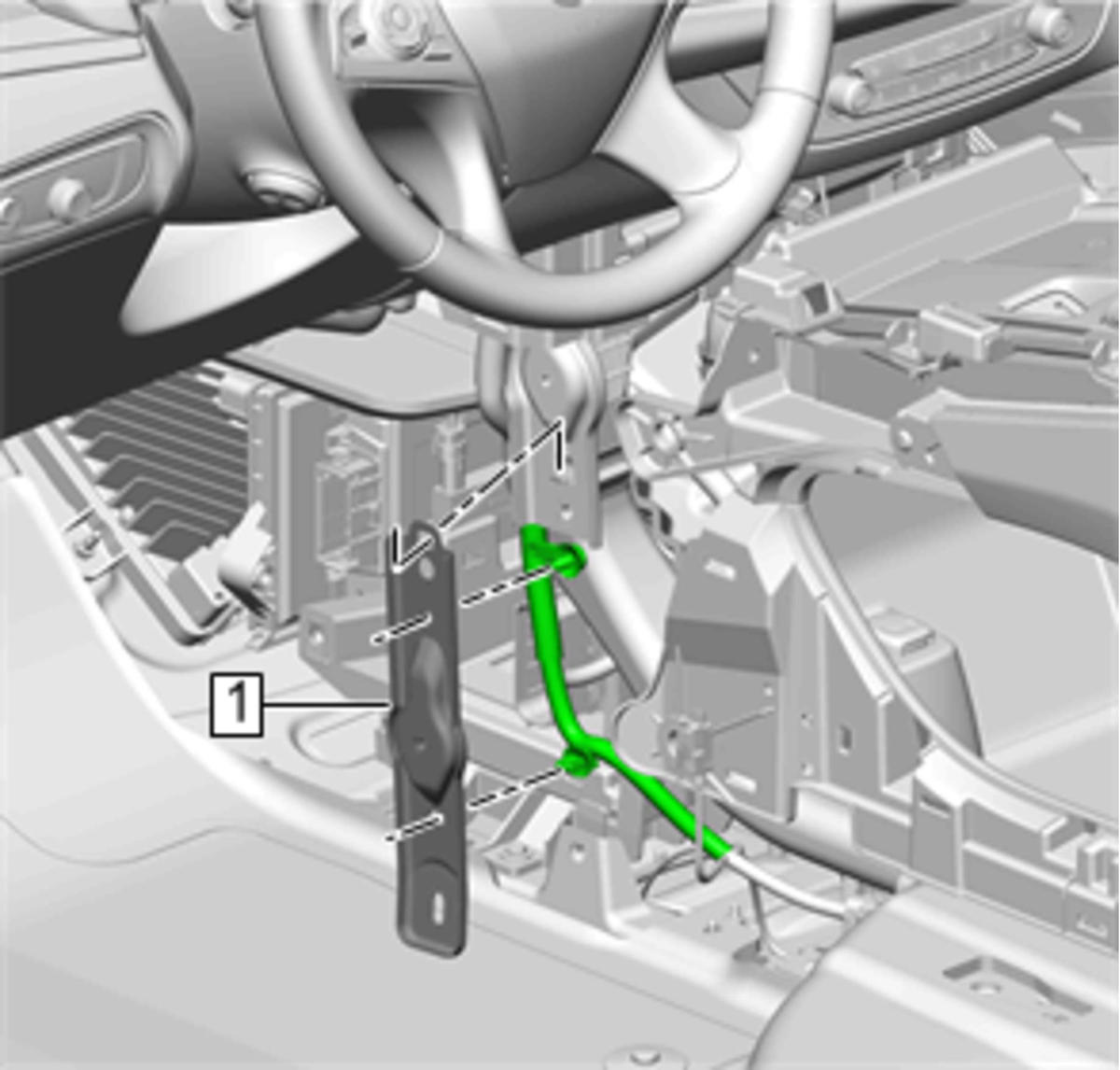

  4. GM4820852Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace - Left Side (1) - Install

  5. Connect the electrical connectors.

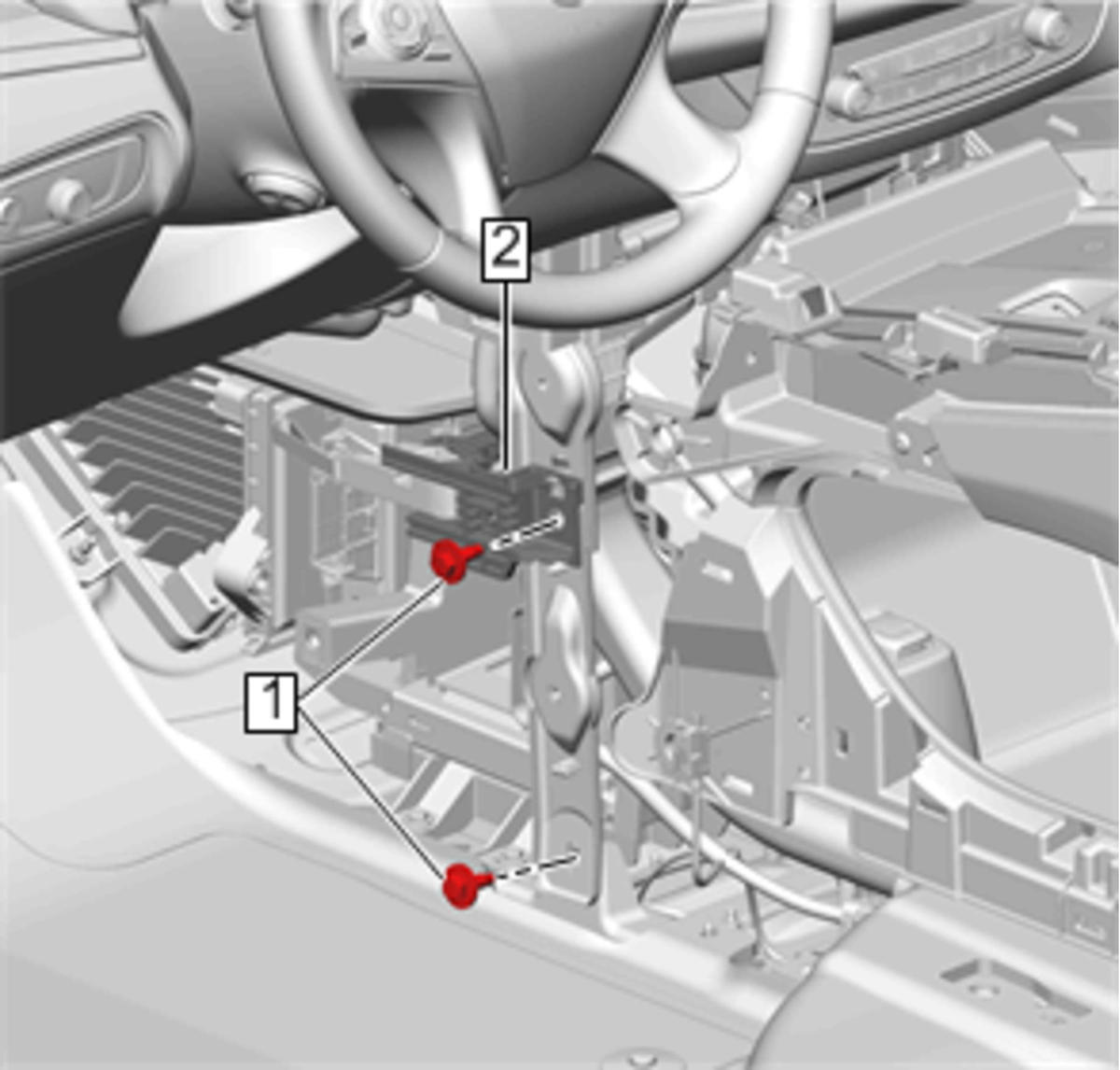

  6. GM4820843Courtesy of GENERAL MOTORS COMPANY

    Install the electronic transmission range selector manual park release cable handle (2) to the brace. Electronic Transmission Range Selector Manual Park Release Cable Replacement

  7. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb-ft)
  8. GM4817424Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into position.

  9. GM4802050Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)

  10. Front Floor Console Bolt Access Hole Cover (1) - Install
  11. GM4802048Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)

  12. Front Floor Console Bolt Access Hole Cover (1) - Install
  13. GM4794592Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)

  14. GM4801332Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

  15. GM4800359Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side

  16. GM4787131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

  17. GM4786350Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side

  18. GM4786974Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
