Installation Procedure

  1. GM4758197Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Instrument Panel Radio Front Trim Plate (1) - Install

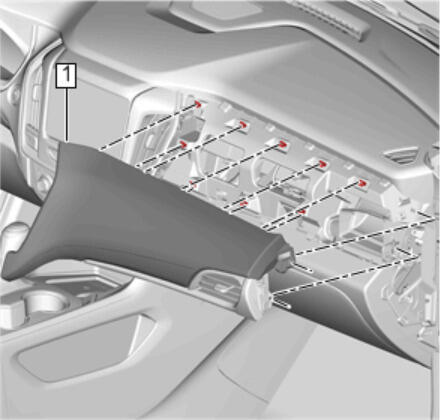

  3. GM4756846Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

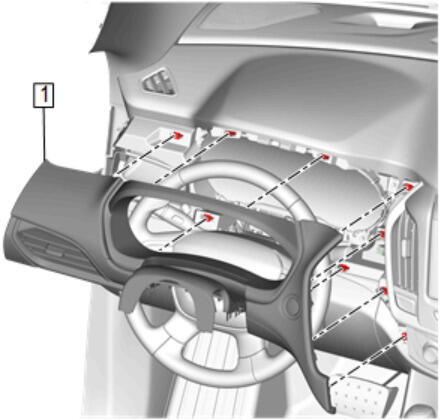

  4. GM4755737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side
