Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

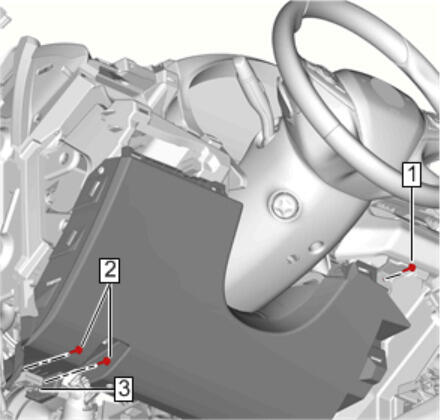

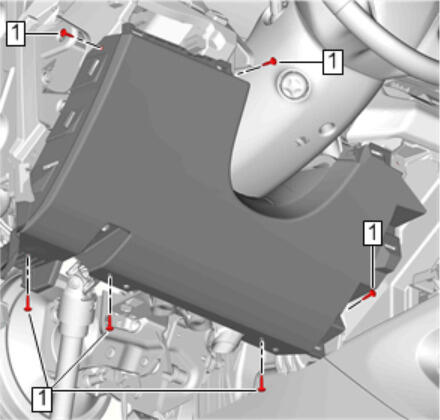

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [ 6x ] 2 N.m (18 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Connect the data link connector. (3)
Data Link Connector Bolt (2) - Install and tighten 2.5 N.m (22 lb/in)
Instrument Panel Trim Pad Bolt (1) - Install and tighten 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Hood Primary Latch Release Cable Handle - Install - Hood Primary Latch Release Cable Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate Applique - Left Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Trim Pad (1) - Install - Instrument Panel Center Trim Pad Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
