Removal Procedure

  1. Windshield Garnish Molding - Remove - Windshield Garnish Molding Replacement

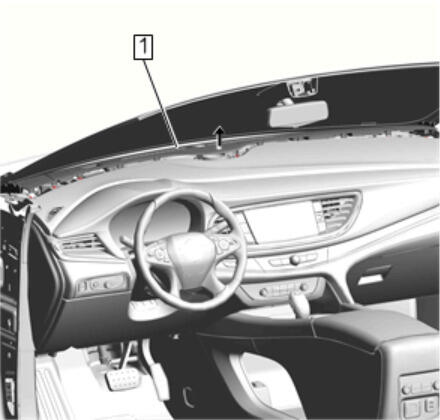

  2. GM4782385Courtesy of GENERAL MOTORS COMPANY

    Release the retainers of the instrument panel extension (1) with a plastic trim tool and pull up.

  3. Disconnect the electrical connector.
  4. GM4782388Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Remove

  5. Transfer components as necessary.
