Installation Procedure

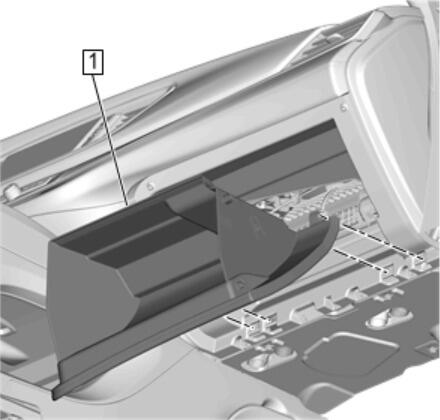

  1. GM4791395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

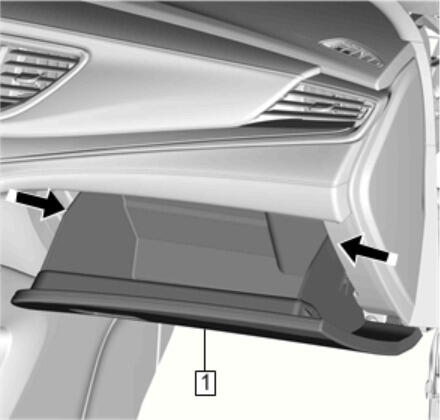

  2. GM4791393Courtesy of GENERAL MOTORS COMPANY

    Squeeze the sides of the instrument panel compartment door (1) and install the door past the stop.

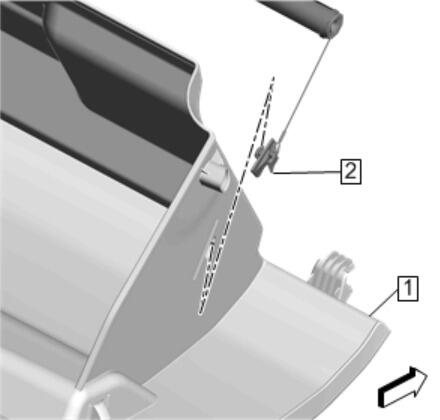

  3. GM4791390Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel compartment door dampener (2) to the instrument panel compartment door (1).

  4. Instrument Panel Compartment Door - Close
