Instrument Panel Compartment Door Dampener Replacement

Courtesy of GENERAL MOTORS COMPANY

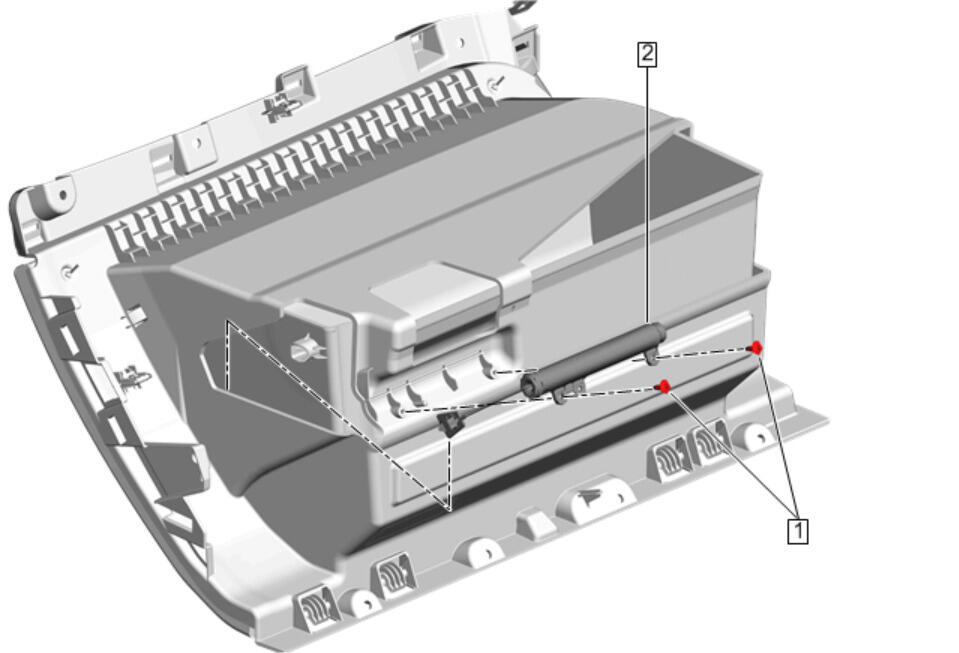

Callout	Component Name
Preliminary Procedure  Instrument Panel Compartment Replacement
1	Instrument Panel Compartment Door Dampener Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb/in)
2	Instrument Panel Compartment Door Dampener Procedure  Disconnect the instrument panel compartment door dampener from the instrument panel compartment door.
