Installation Procedure

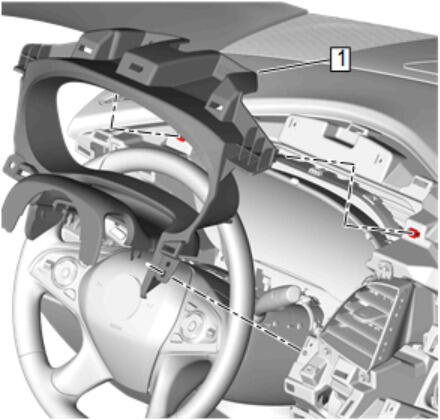

  1. GM4803347Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install

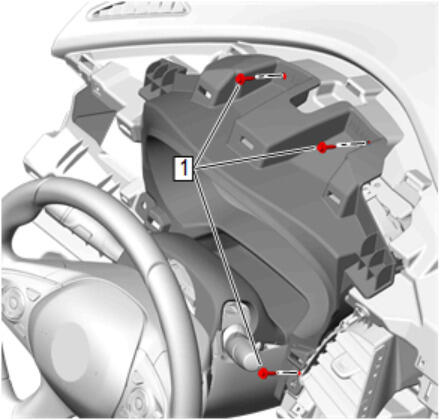

  2. GM4803342Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [ 3x ] 2.5 N.m (22 lb/in)

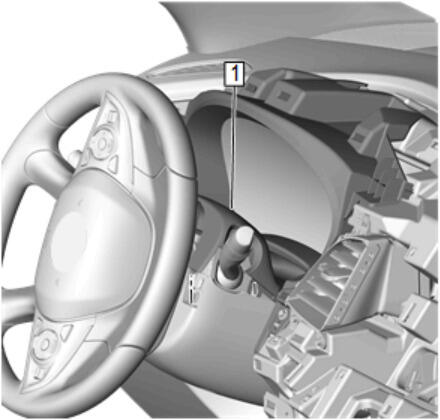

  3. GM5122348Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover (1) - Install

  4. GM4787680Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  5. Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement
  6. GM4787138Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement

  7. GM4787131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

  8. GM4786350Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side

  9. GM4786974Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side

  10. GM4784215Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement

  11. GM4784111Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side

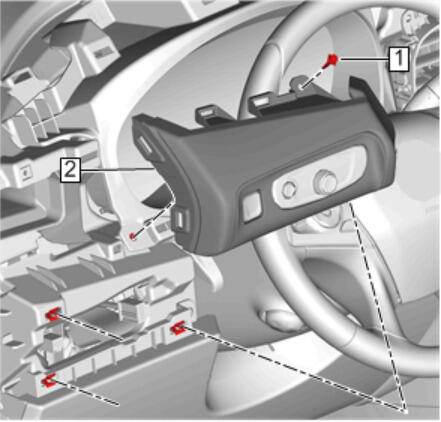

  12. GM4791277Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side

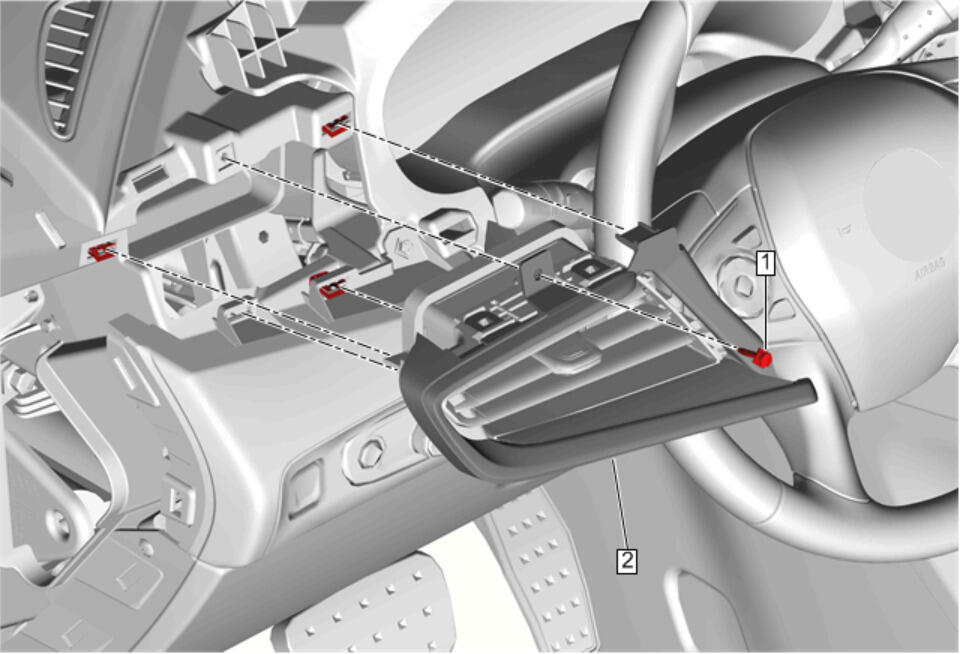

  13. GM4784805Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Left Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Left Side

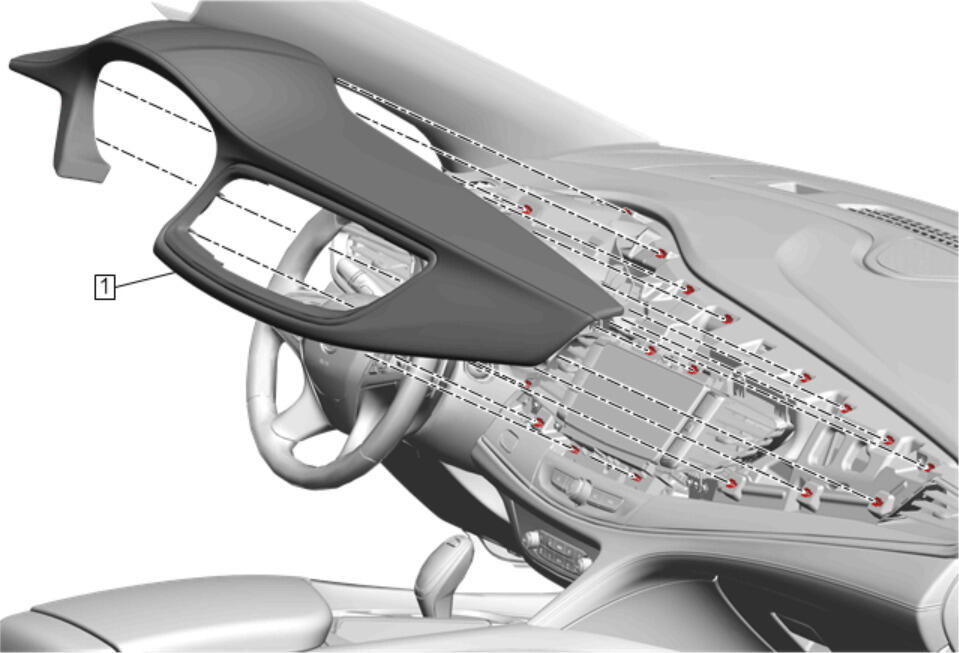

  14. GM4783609Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install - Instrument Panel Center Trim Pad Replacement

  15. GM4782879Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
