Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

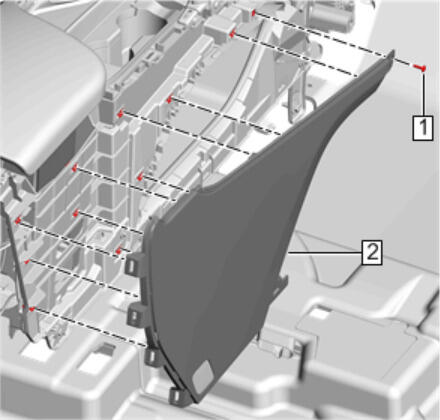

Front Floor Rear Console Side Trim Panel - Right Side (2) - Install
Front Floor Console Bolt (1) - Install and tighten 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment (1) - Install - Front Floor Console Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
