Removal Procedure

  1. GM4784111Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (2) - Remove - Instrument Panel Trim Plate Applique Replacement - Right Side

  2. GM4784215Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Remove - Instrument Panel Center Trim Plate Applique Replacement

  3. GM4786974Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Right Side (1) - Remove - Front Floor Console Applique Replacement - Right Side

  4. GM4786350Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side (1) - Remove - Front Floor Console Applique Replacement - Left Side

  5. GM4787131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Remove - Instrument Panel Lower Center Trim Panel Replacement

  6. GM4787138Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Remove - Instrument Panel Lower Trim Panel Replacement

  7. Heater and Air Conditioning User Interface Control - Remove - Heater and Air Conditioning User Interface Control Replacement
  8. GM4787680Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Remove - Instrument Panel Trim Pad Replacement - Right Side

  9. GM4800359Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Remove - Front Floor Console Extension Panel Replacement - Right Side

  10. GM4801332Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Remove - Front Floor Console Extension Panel Replacement - Left Side

  11. GM4799105Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Remove Front Floor Console Rear Trim Panel Replacement

  12. GM4799571Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Remove Front Floor Console Compartment Replacement

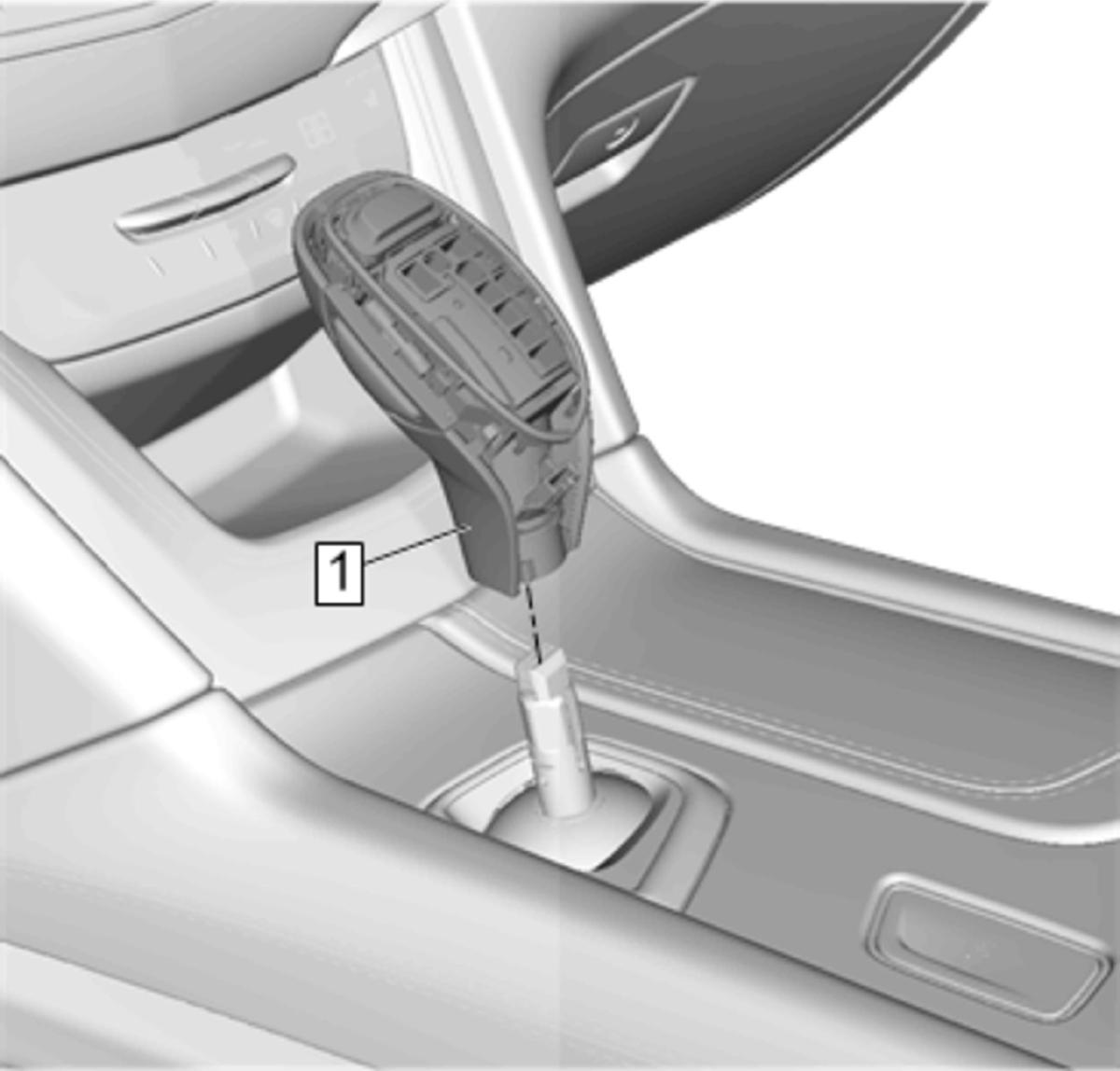

  13. GM4550542Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Lever Knob (1) - Remove Transmission Control Lever Knob Replacement

  14. GM4794592Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Remove [ 2x ]

  15. GM4802048Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Remove

  16. Use a plastic trim tool if necessary.
  17. Front Floor Console Bolt @ Front Floor Console Bracket (2) - Remove [ 5x ]
  18. GM4802050Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Remove

  19. Use a plastic trim tool if necessary.
  20. Front Floor Console Bolt @ Front Floor Console Bracket (2) - Remove [ 5x ]
  21. GM4802117Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back to access the forward fasteners of the front floor console trim plate.

  22. GM4802123Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Remove [ 10x ]

  23. GM4802129Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Remove

  24. Disconnect the electrical connectors.
  25. Transfer components as necessary.
