Installation Procedure

  1. GM4802129Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Front Floor Console Trim Plate (1) - Install
  3. GM4802123Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt (1) - Install and tighten [ 10x ] 2.5 N.m (22 lb/in)

  4. GM4802117Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into position.

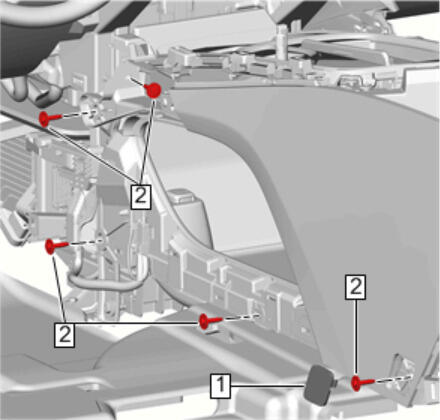

  5. GM4802050Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)

  6. Front Floor Console Bolt Access Hole Cover (1) - Install

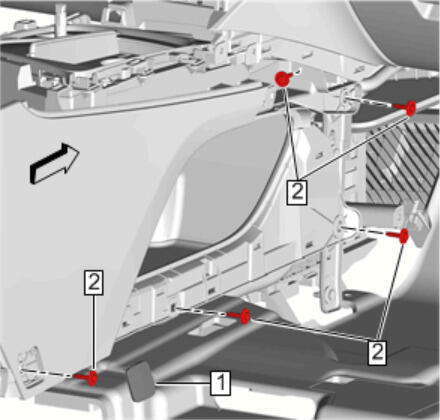

  7. GM4802048Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)

  8. Front Floor Console Bolt Access Hole Cover (1) - Install
  9. GM4794592Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)

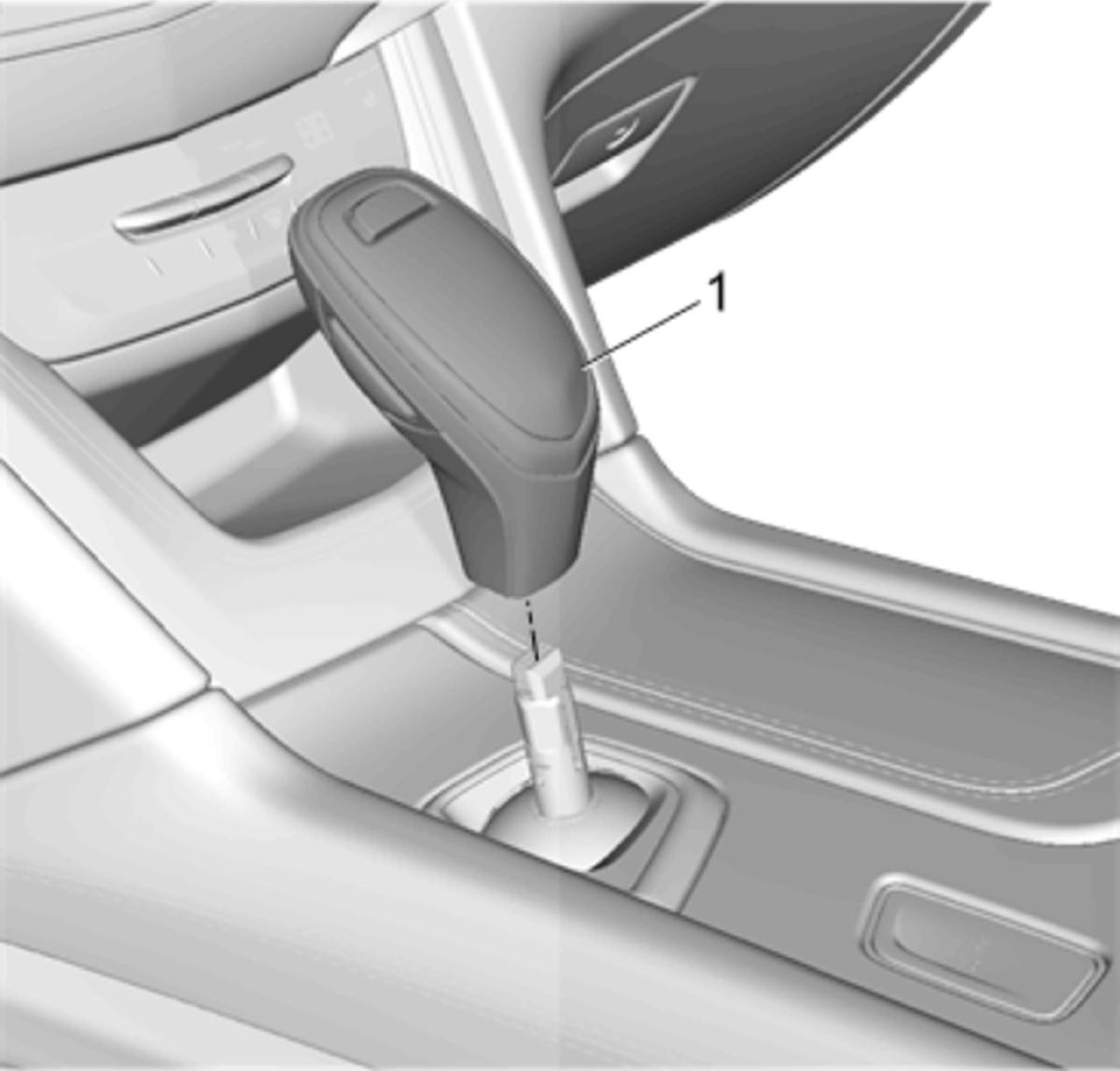

  10. GM4550534Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Lever Knob (1) - Install Transmission Control Lever Knob Replacement

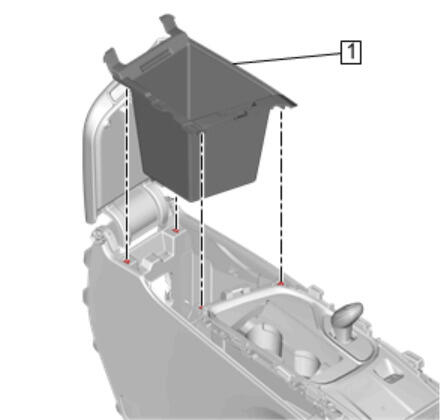

  11. GM4799571Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install Front Floor Console Compartment Replacement

  12. GM4799105Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Install Front Floor Console Rear Trim Panel Replacement

  13. GM4801332Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

  14. GM4800359Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side

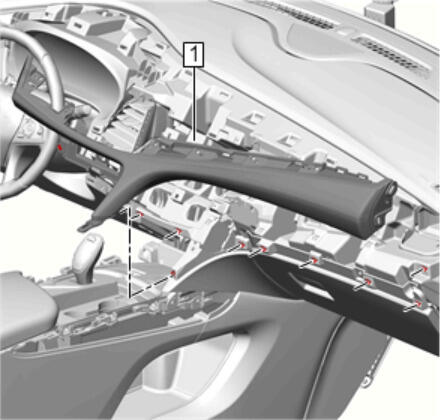

  15. GM4787680Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  16. Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement
  17. GM4787138Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement

  18. GM4787131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

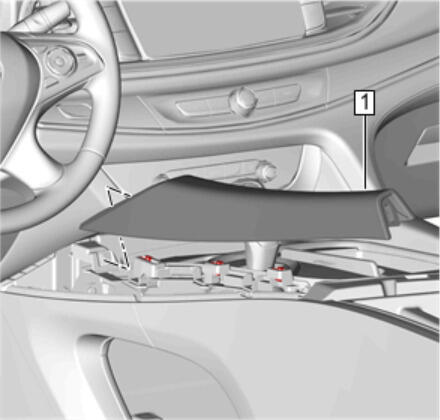

  19. GM4786350Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side

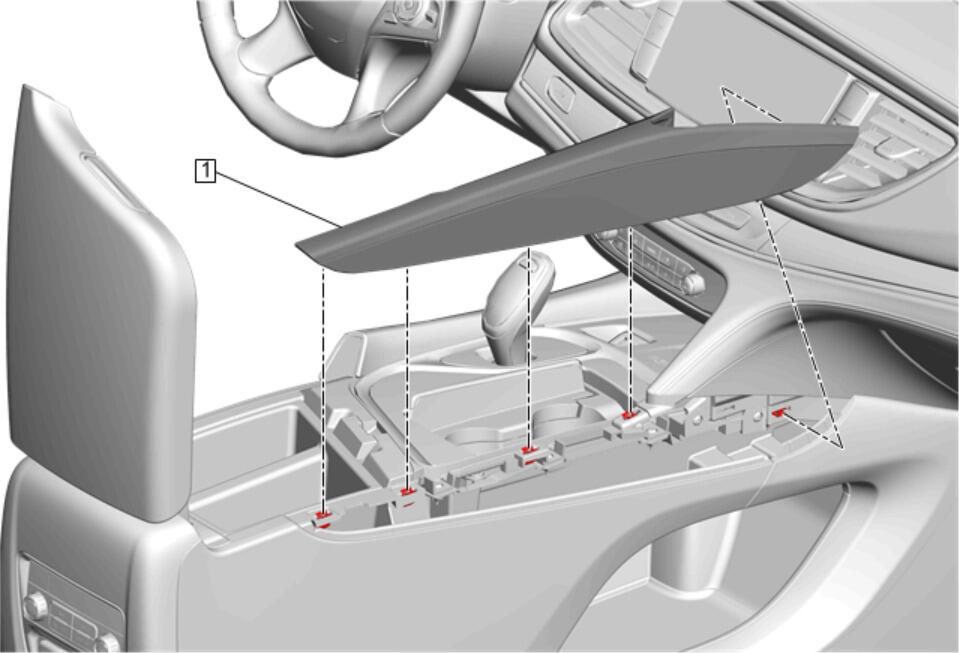

  20. GM4786974Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side

  21. GM4784215Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement

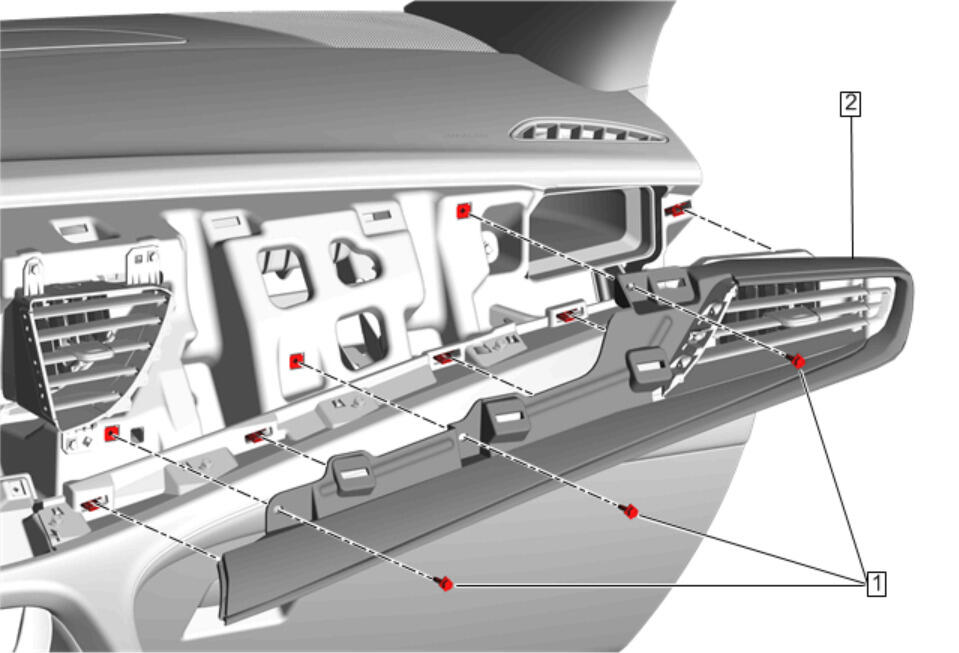

  22. GM4784111Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
