Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Remove - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Remove - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Panel (1) - Remove - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (2) - Remove - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Remove - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

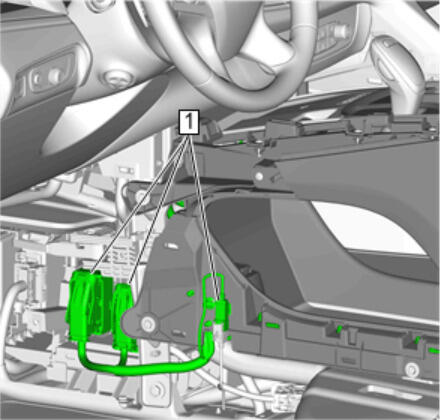

Disconnect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt (1) - Remove [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt Access Hole Cover (1) - Remove
Use a plastic trim tool if necessary.
Front Floor Console Bolt @ Front Floor Console Bracket (2) - Remove [ 5x ]
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt Access Hole Cover (1) - Remove
Use a plastic trim tool if necessary.
Front Floor Console Bolt @ Front Floor Console Bracket (2) - Remove [ 5x ]
Courtesy of GENERAL MOTORS COMPANY

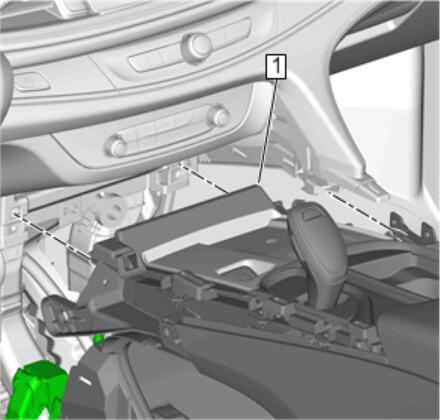

Slide the front floor console (1) back to clear the locator pins and cooling duct.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, lift and remove the front floor console (1) from the vehicle.
Transfer components as necessary.
