Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Install
Front Floor Console Extension Panel Bolt (1) - Install and tighten 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

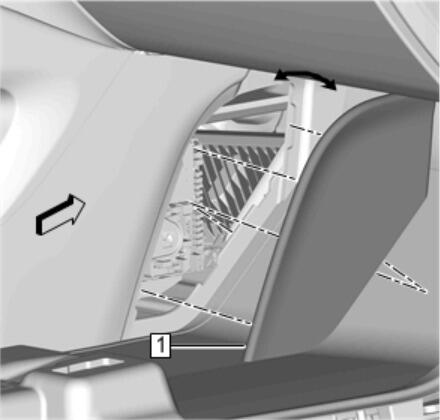

Front Floor Console Side Trim Panel (1) - Install - Front Floor Console Side Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
