Removal Procedure

  1. GM4786350Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side (1) - Remove - Front Floor Console Applique Replacement - Left Side

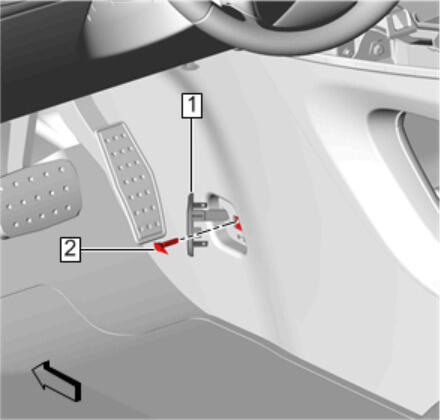

  2. GM4801330Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Open

  3. Use a flat bladed plastic trim tool.
  4. Front Floor Console Bolt (2) - Remove
  5. GM4801332Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Remove

  6. Reposition the seat as necessary to access the bolts.
