Front Floor Console Cup Holder Replacement

Courtesy of GENERAL MOTORS COMPANY

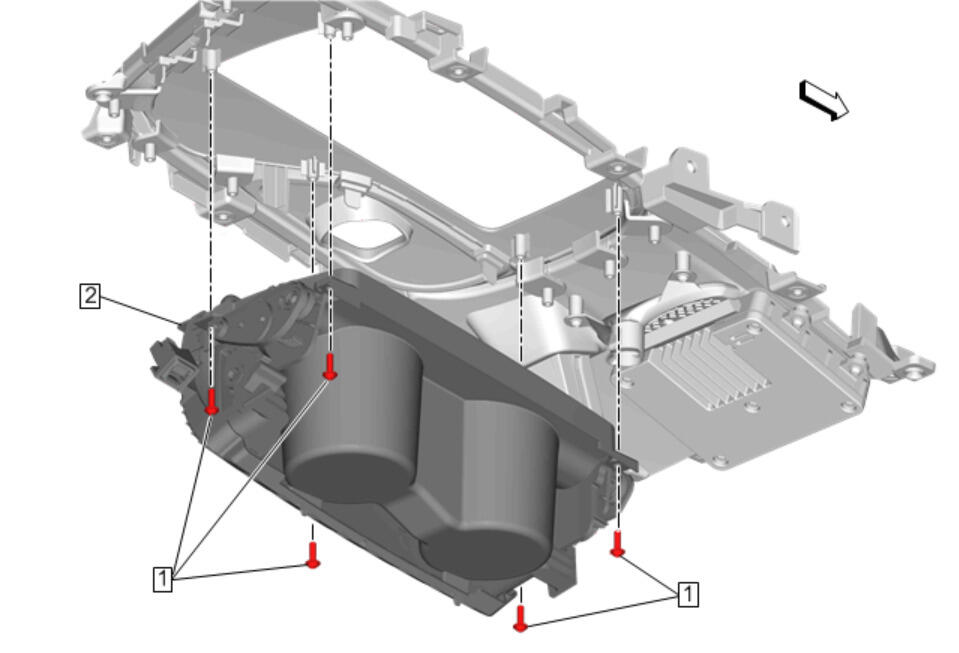

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Front Floor Console Cup Holder Bolt [ 5x ] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb/in)
2	Front Floor Console Cup Holder
