Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Remove - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Remove - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (1) - Remove - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

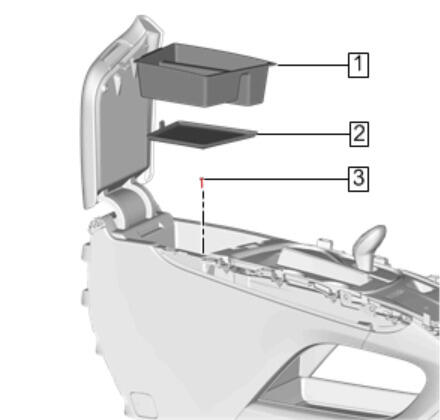

Front Floor Console Armrest Stowage Tray (1) - Remove
Front Floor Console Center Compartment Liner (2) - Remove
Front Floor Console Bolt (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors.
Front Floor Console Compartment (1) - Remove
Transfer components as necessary.
