Removal Procedure
Front Floor Console Rear Trim Panel (1) - Remove Front Floor Console Rear Trim Panel Replacement
- Move the front seats forward.

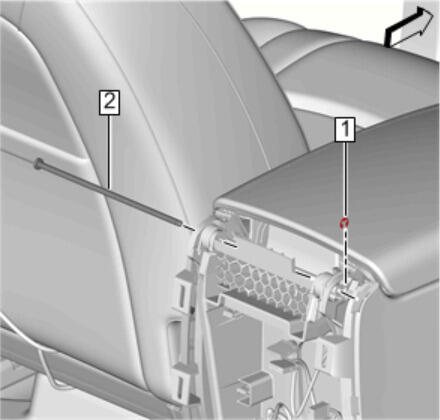

Use a suitable tool to release the front floor console compartment door hinge pin retainer (1) from the hinge pin.
- Remove the front floor console compartment door hinge pin (2) from the armrest.
Use a suitable tool to release the ends of the front floor console armrest hinge spring (1) from the front floor console.
Remove the front floor console armrest (1) from the front floor console.
Use a suitable tool to release the ends of the front floor console armrest hinge spring (1) from the front floor console armrest.
- Inspect the front floor console armrest hinge springs (1) and transfer if they are not damaged.
