Front Floor Console Armrest Latch Replacement

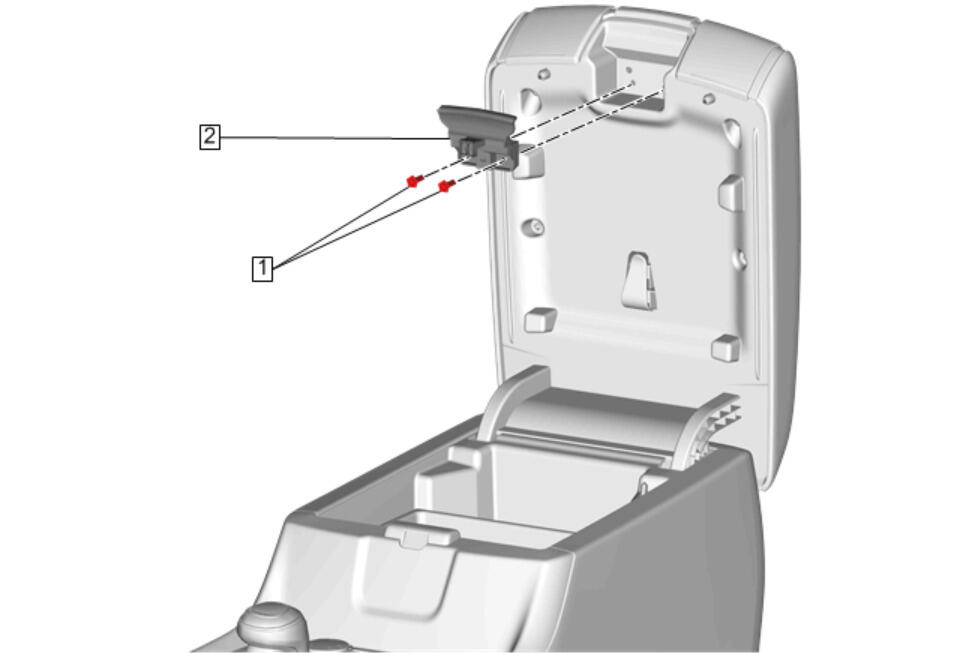

GM4751034Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the armrest cover.
1 Front Floor Console Armrest Latch Bolt [ 2x ]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb/in)
2 Front Floor Console Armrest Latch
