Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

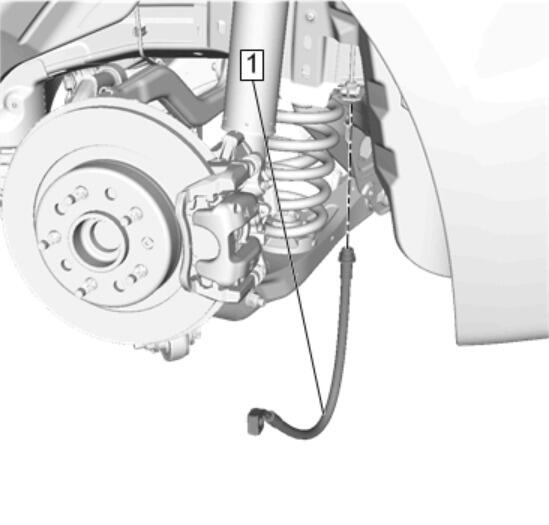

Rear Brake Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

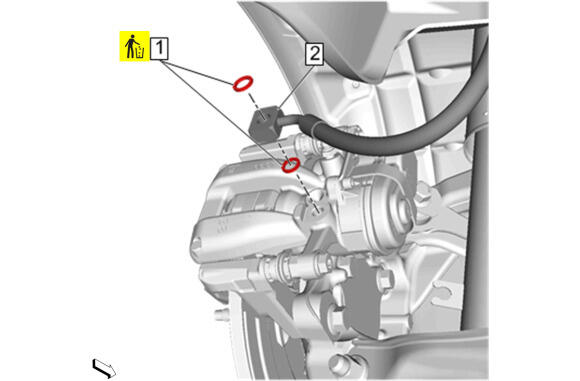

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install NEW [2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

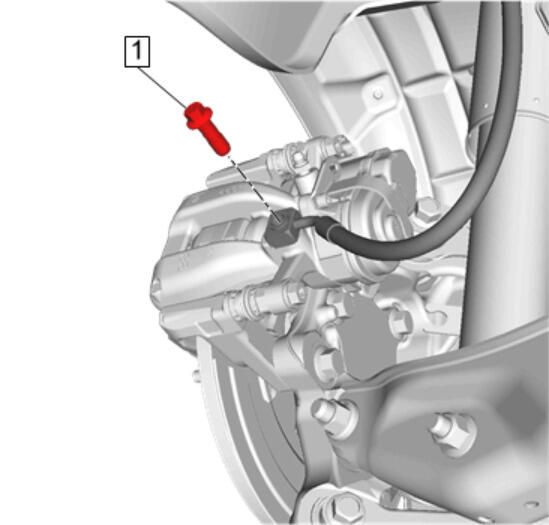

Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
Courtesy of GENERAL MOTORS COMPANY

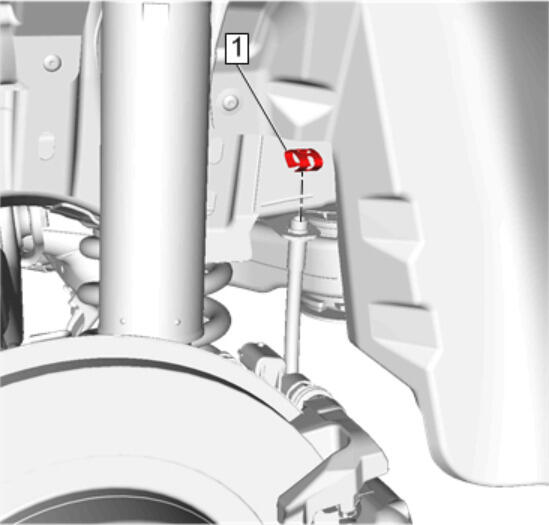

Brake Hose Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Rear Wheelhouse Liner - Install - Rear Wheelhouse Liner Replacement
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
