Installation Procedure

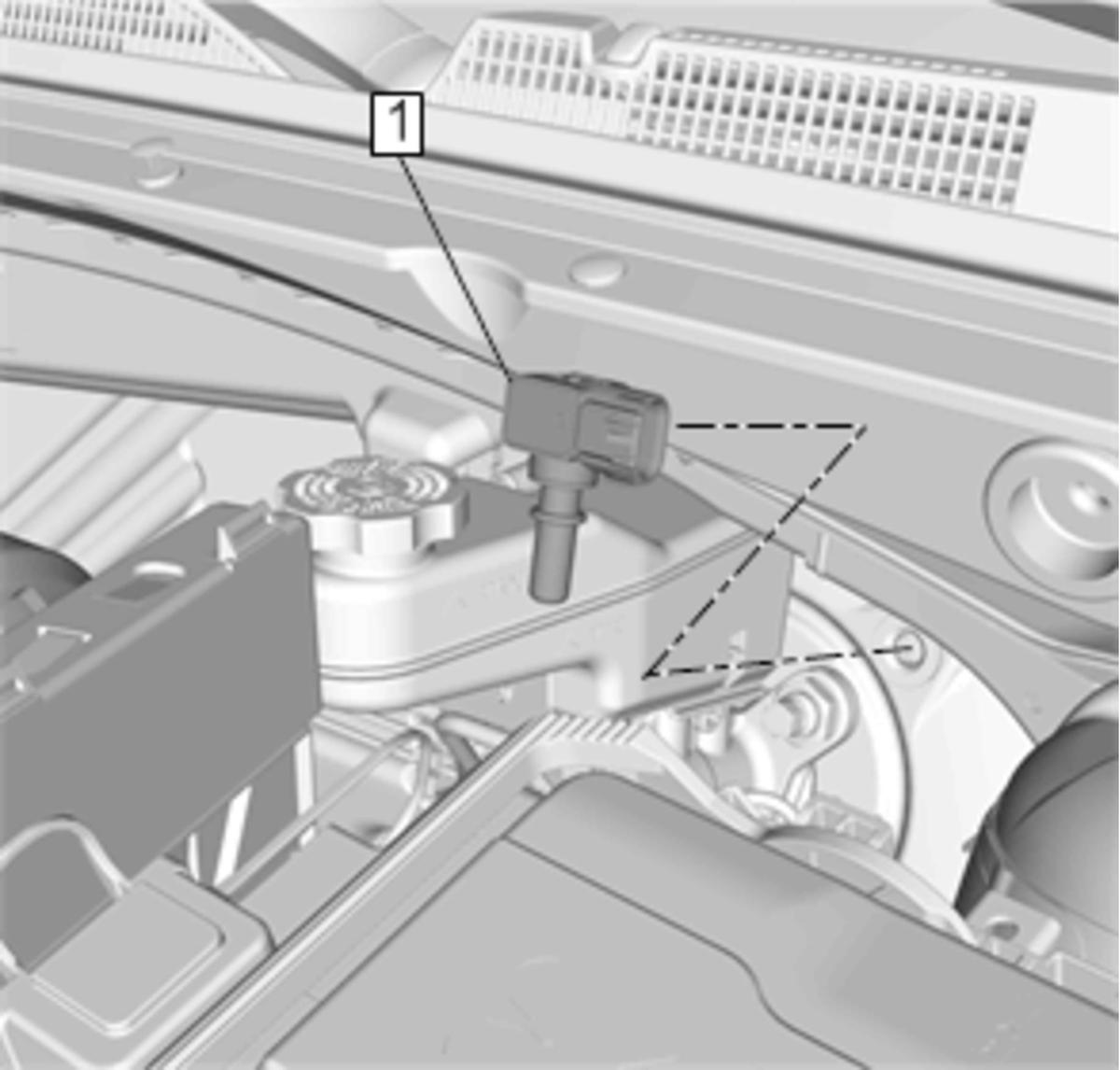

  1. GM4238171Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used to ease assembly.

    Power Brake Booster Vacuum Sensor (1) - Install

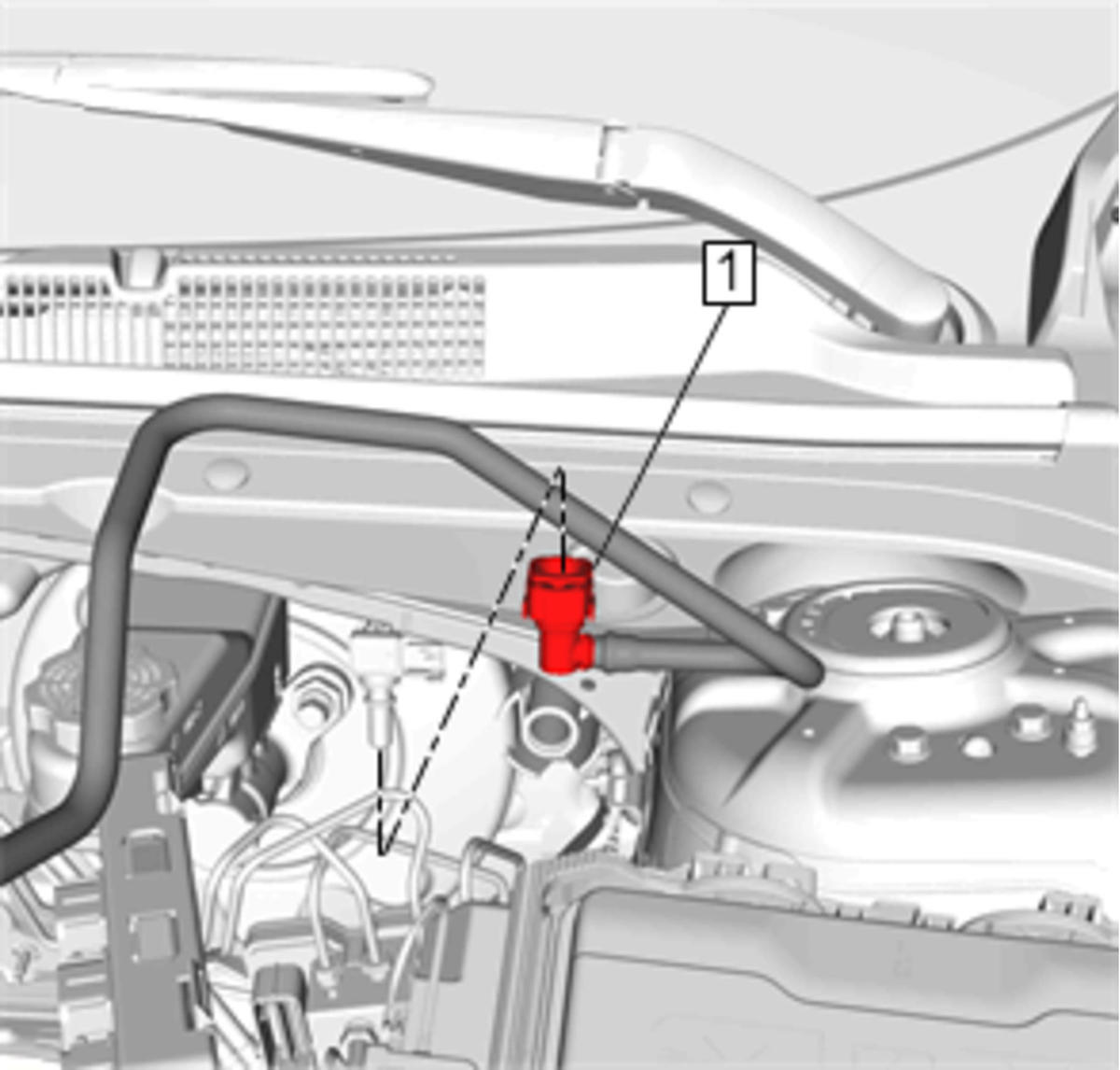

  2. GM4238154Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe Fitting (1) @ Power Brake Booster Vacuum Sensor - Connect

  3. Power Brake Booster Vacuum Sensor Electrical Connector - Connect
  4. Radiator Surge Tank Replacement - Install
