Installation Procedure

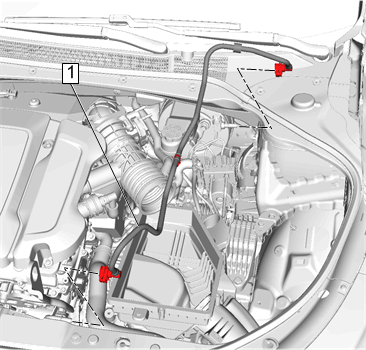

  1. GM4420351Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe (1) - Install

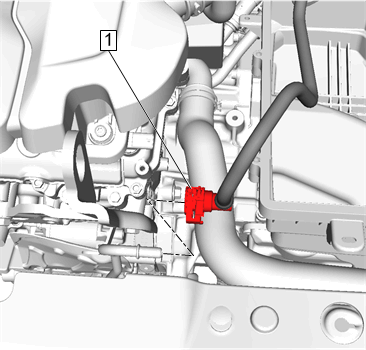

  2. GM4420350Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe Quick Connect Fitting (1) - Connect

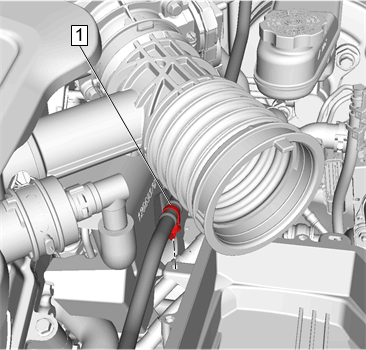

  3. GM4420348Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe Clip (1) - Secure

  4. GM4420258Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe Quick Connect Fitting (1) - Connect

  5. Air Cleaner Element - Install - Air Cleaner Element Replacement
  6. Reposition and install the radiator surge tank. Radiator Surge Tank Replacement
