Installation Procedure
Remove the caps from the brake caliper inlet port and the brake hose fitting.

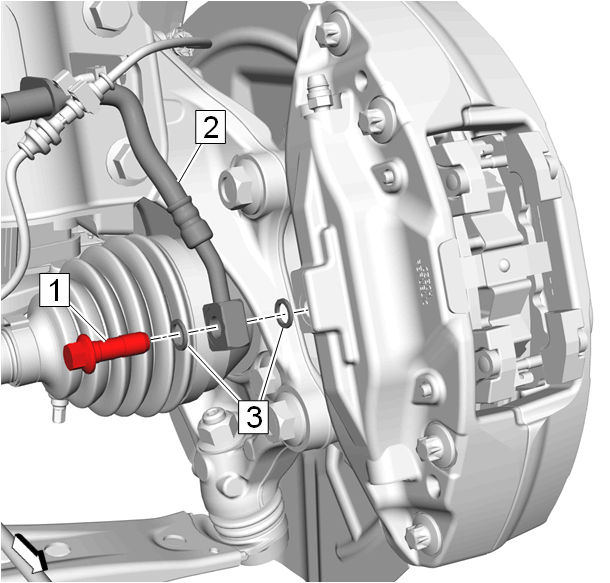

- Front Brake Hose Washer (3) - Install [2x] - Use NEW seals.
- Front Brake Hose (2) - Install
- Brake Hose Fitting Bolt (1) - Install and hand tighten
- Brake Hose Fitting Bolt (1) - Tighten 40 N.m (30 lb ft)
Front Brake Hose (1) - Engage

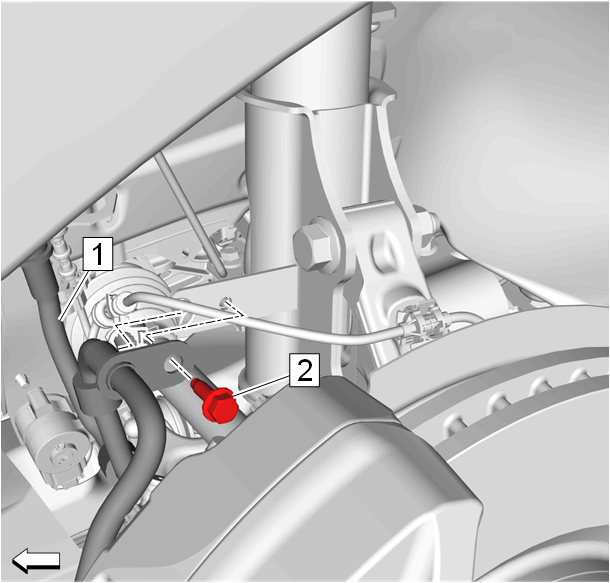

- Front Brake Hose Bracket Bolt (2) @ Front Brake Hose (1) - Install and tighten 9 N.m (80 lb in)

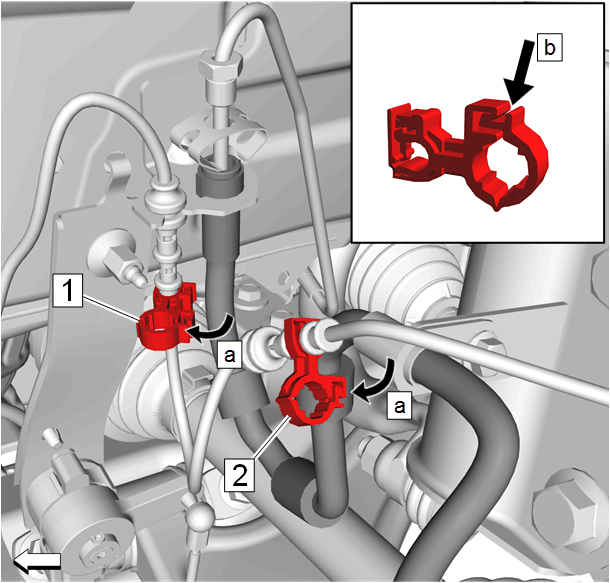

Position the 2 brake hose retainers (1, 2) and close them.
Remove the caps from the brake hose fitting and the brake pipe fitting.

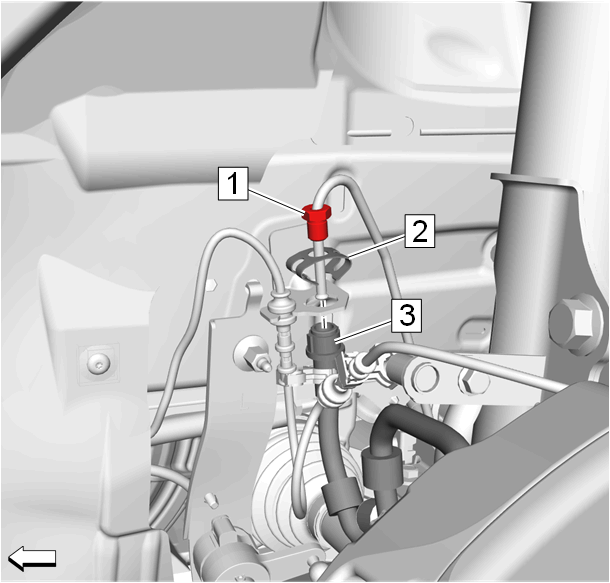

- Front Brake Hose (3) - Engage
- Brake Hose Retainer (2) @ Front Brake Hose (3) - Install
- Front Brake Pipe Fitting (1) @ Front Brake Hose (3) - Install and tighten 18 N.m (13 lb ft)
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
WARNING:
Make sure the brake hose is not twisted, tensioned or kinked after installation. With the suspension settled, check that there is no contact with the surrounding components when moving the steering from stop to stop. Failure to comply could result in damage to the brake hose and lead to severe or fatal injuries.
