Removal Procedure

Without disconnecting the hoses, remove and position aside the radiator surge tank. Radiator Surge Tank Replacement
Instrument Panel Tie Bar - Remove - Instrument Panel Tie Bar Replacement
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Bolt (1) - Loosen [2x]
Floor Front Air Outlet Duct - Left Side - Remove - Floor Front Air Outlet Duct Replacement - Left Side
Accelerator Pedal Position Sensor Electrical Connector - Disconnect
Brake Pedal Position Sensor Electrical Connector - Disconnect
Courtesy of GENERAL MOTORS COMPANY

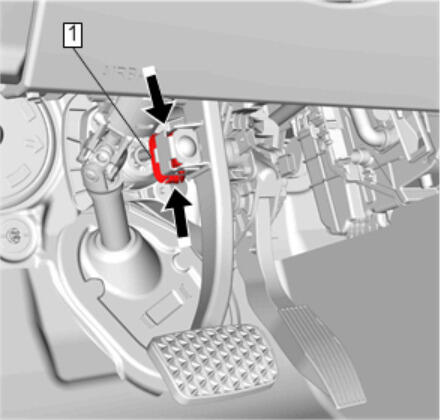

Compress the brake pedal retainer (1) locking tabs.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Pull the brake pedal rearward to disconnect the retainer.

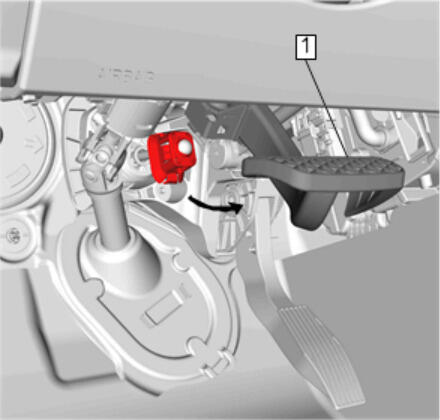

Brake Pedal (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Upper Intermediate Steering Shaft (1) - Remove - Upper Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly (1) - Remove
Brake Pedal Position Sensor - Remove - Brake Pedal Position Sensor Replacement
