Installation Procedure

Brake Pedal Position Sensor - Install - Brake Pedal Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake and Accelerator Pedal Assembly Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly Nut (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Upper Intermediate Steering Shaft (1) - Install - Upper Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

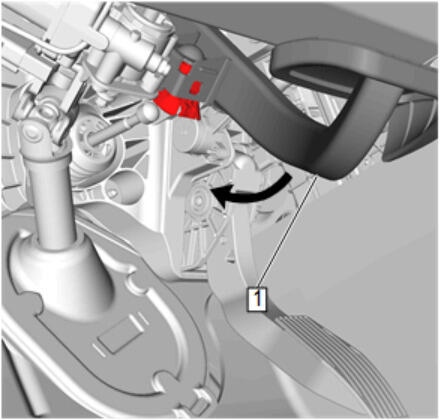

Brake Pedal (1) - Connect
Ensure the locking tabs on the brake pedal retainer are fully engaged in the brake pedal (1) the retainer is attached securely to the brake push rod.
Brake Pedal Position Sensor Electrical Connector - Connect
Accelerator Pedal Position Sensor Electrical Connector - Connect
Floor Front Air Outlet Duct - Left Side - Install - Floor Front Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Bolt (1) - Tighten [2x] 19 N.m (14 lb ft)
Instrument Panel Tie Bar - Install - Instrument Panel Tie Bar Replacement
Radiator Surge Tank - Install - Radiator Surge Tank Replacement
