Installation Procedure

Install the brake pressure modulator valve primary pipe.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

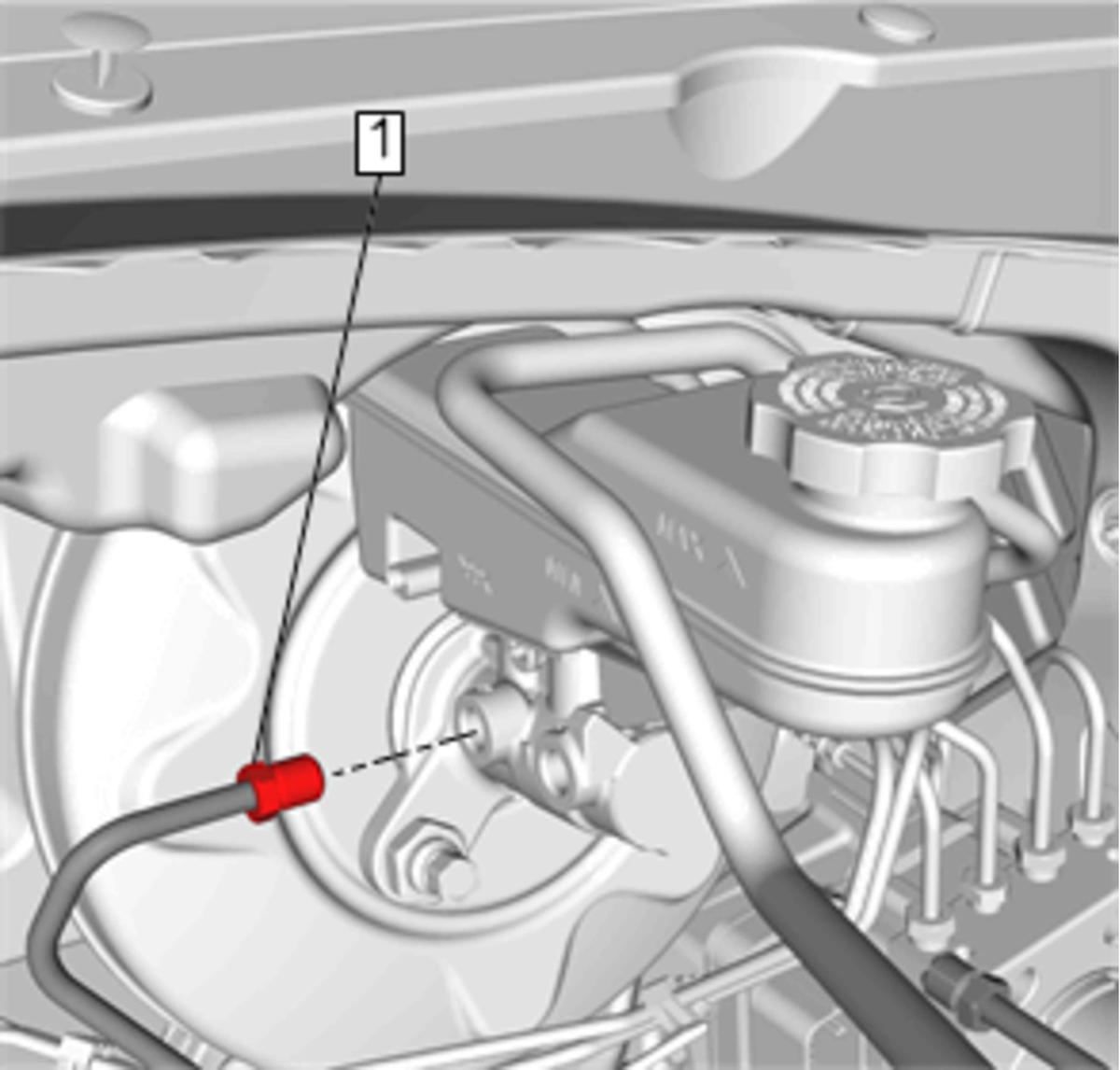

Brake Pressure Modulator Valve Primary Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

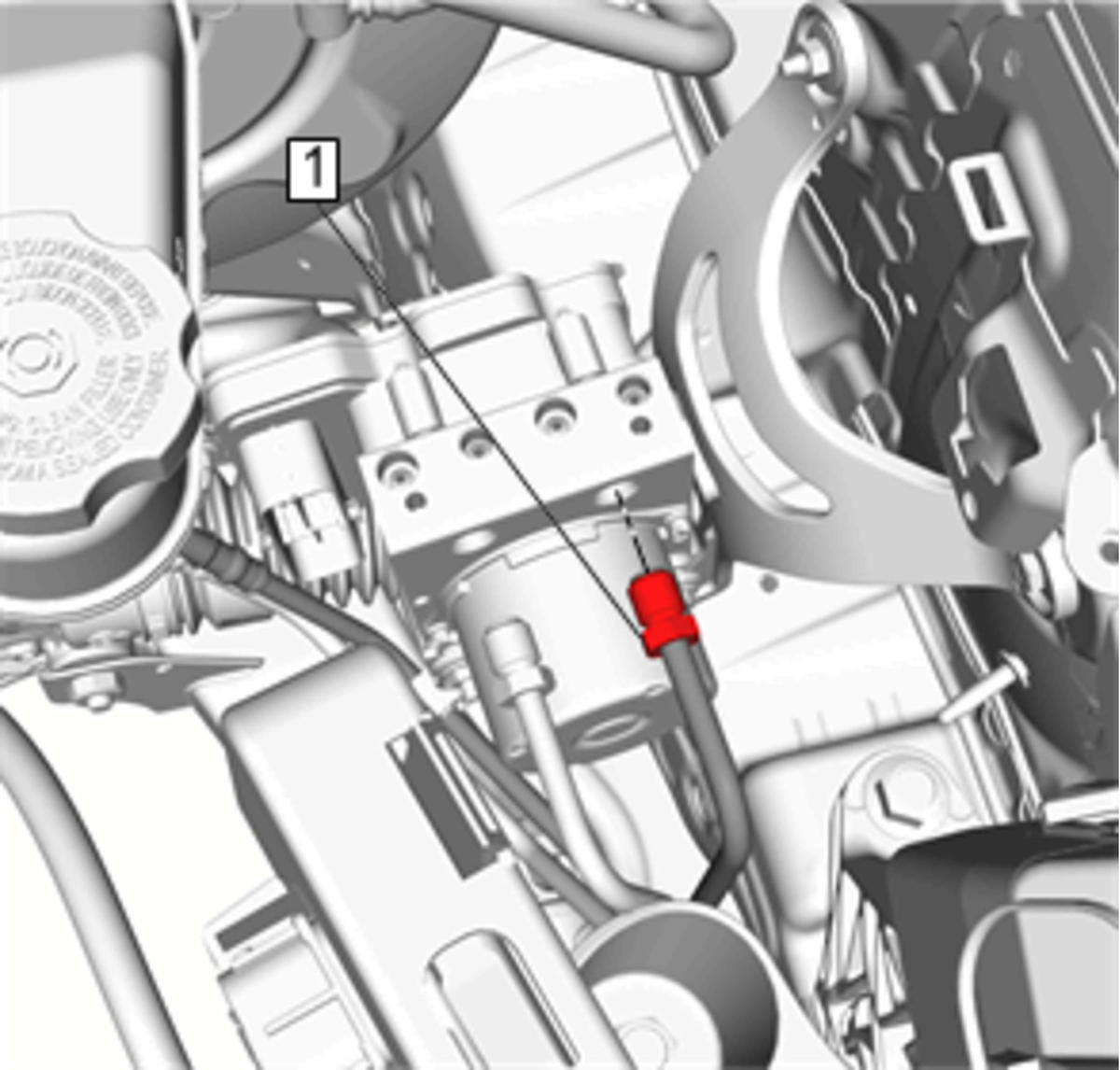

Master Cylinder Primary Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Radiator Surge Tank Replacement - Install
Install the battery. Battery Replacement (2.0L LTG)
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
