Installation Procedure

Install the brake pressure modulator primary valve pipe.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Pressure Modulator Valve Primary Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Master Cylinder Primary Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

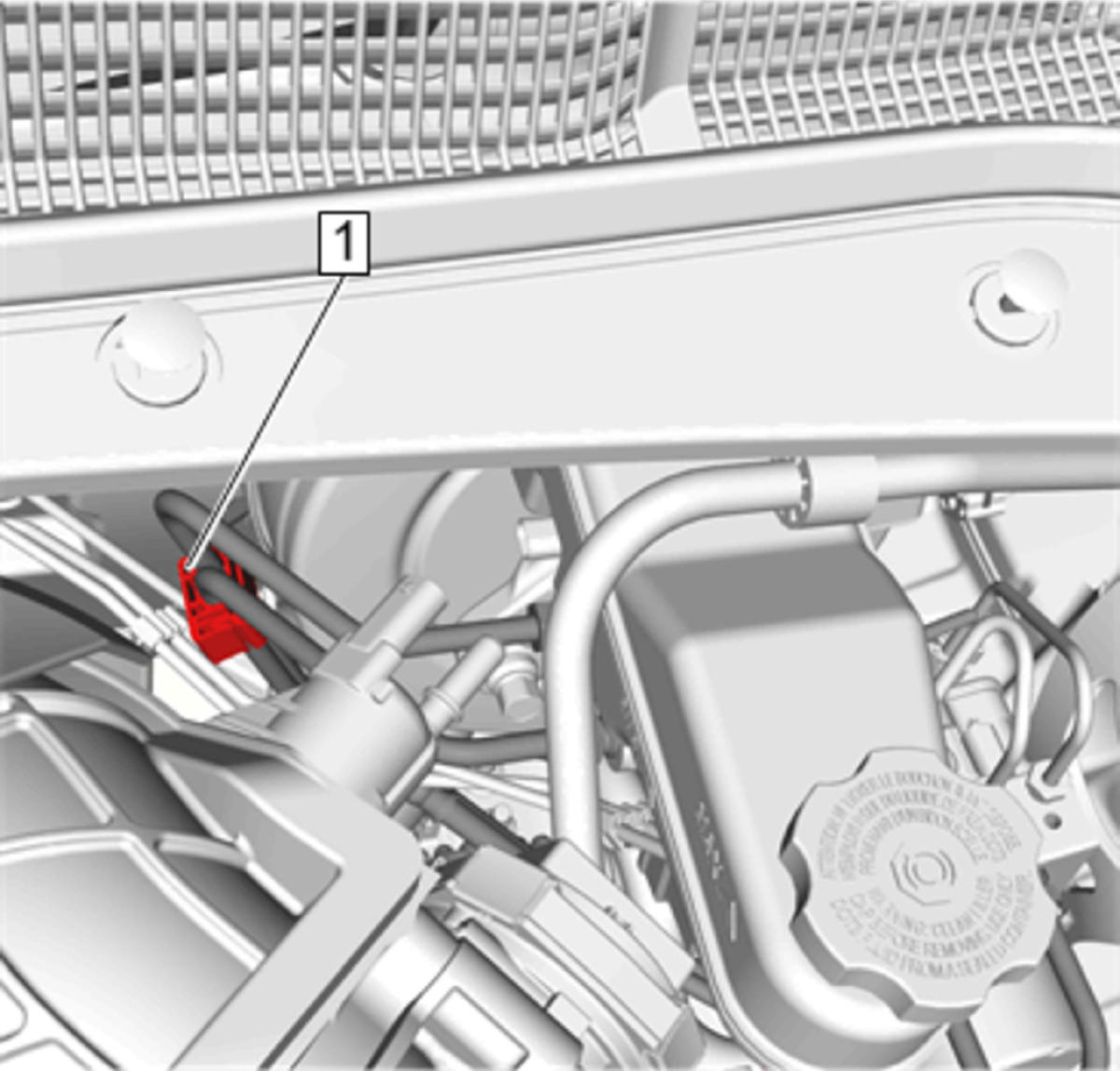

Clip (1) - Secure
Courtesy of GENERAL MOTORS COMPANY

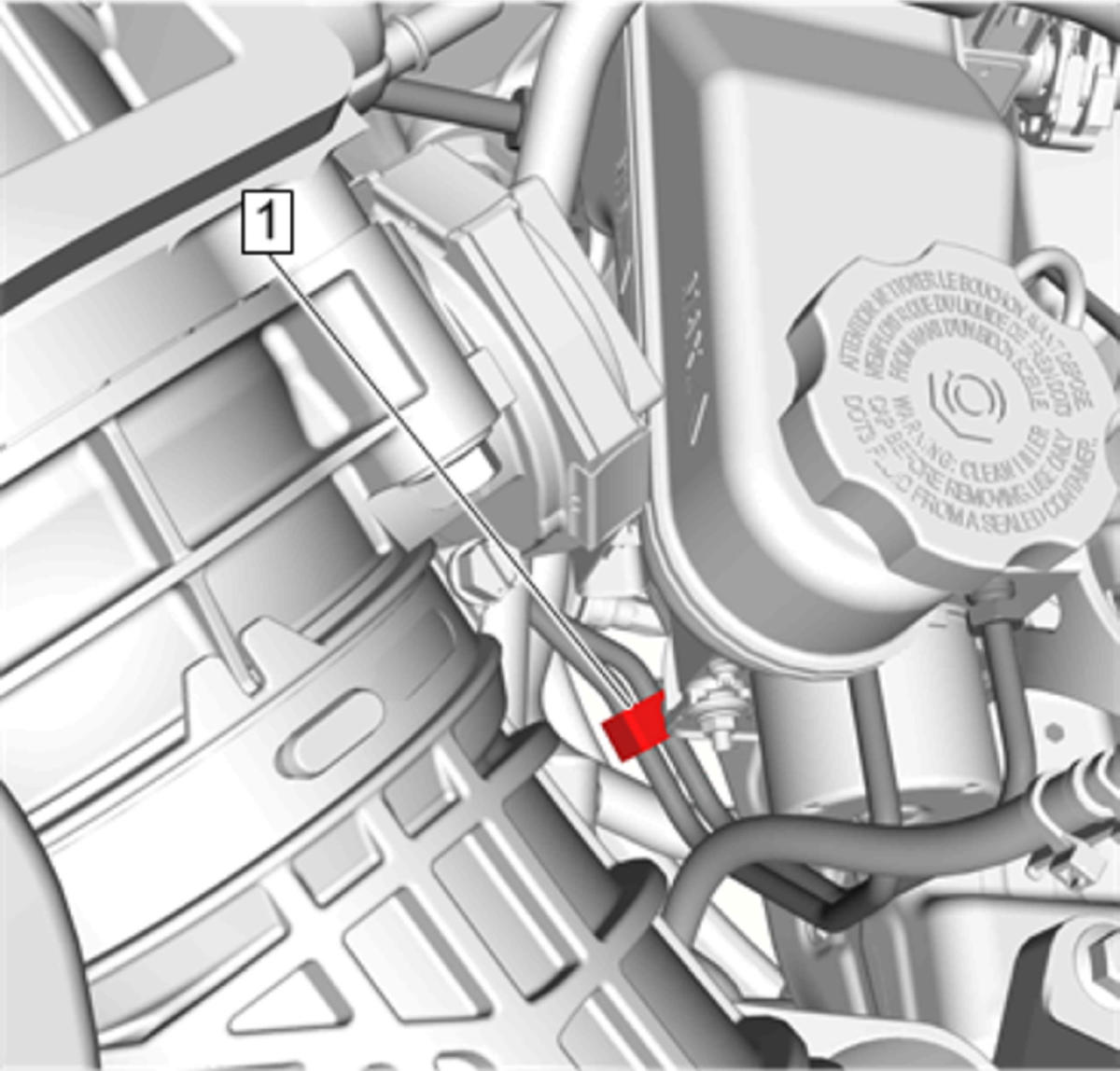

Clip (1) - Secure
Radiator Surge Tank - Install Radiator Surge Tank Replacement
Install the battery. Battery Replacement (3.6L LGX)
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
