Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install a NEW seal.

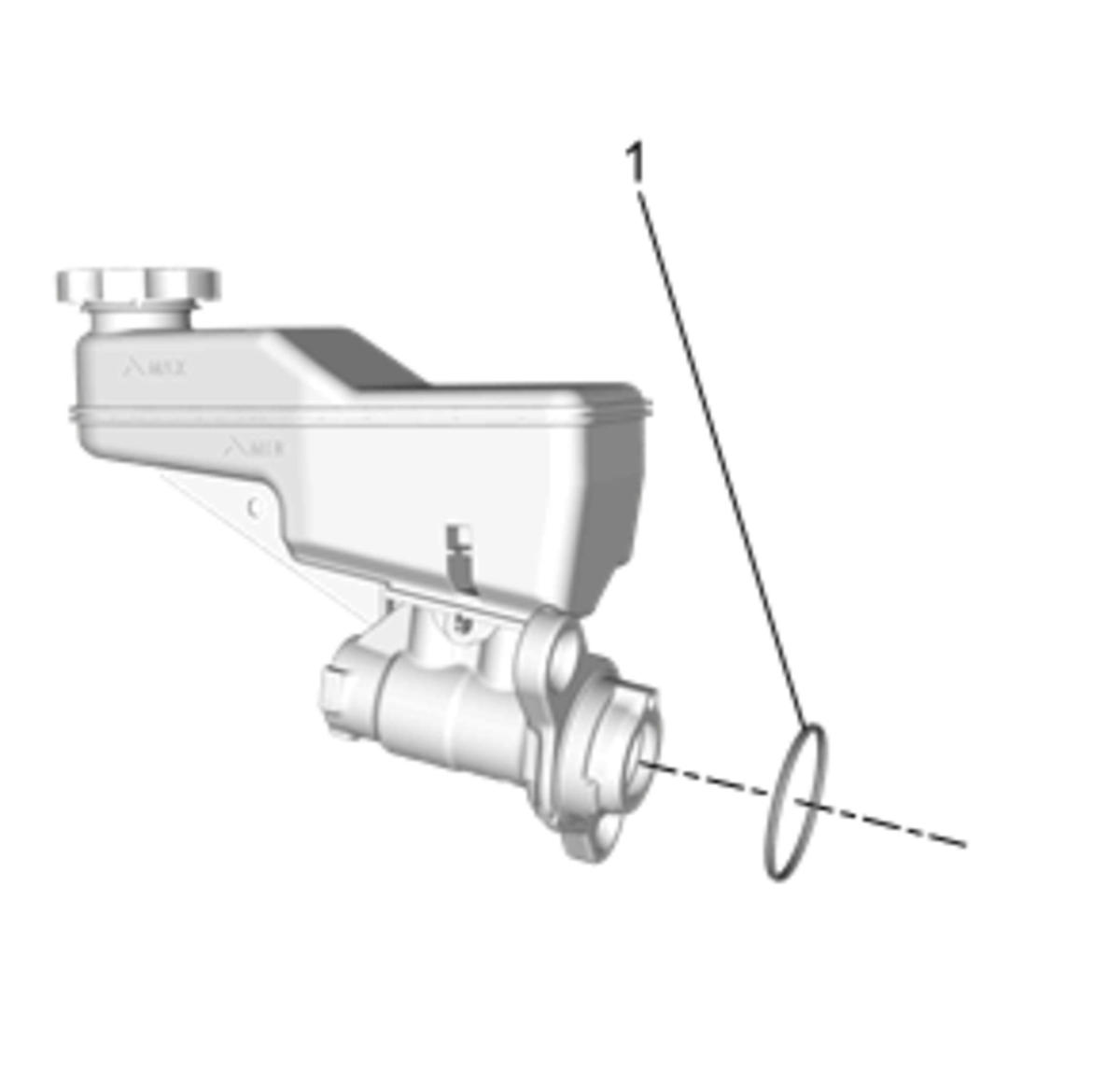

Brake Master Cylinder Seal (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Master Cylinder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

NOTE:
Install NEW nuts.

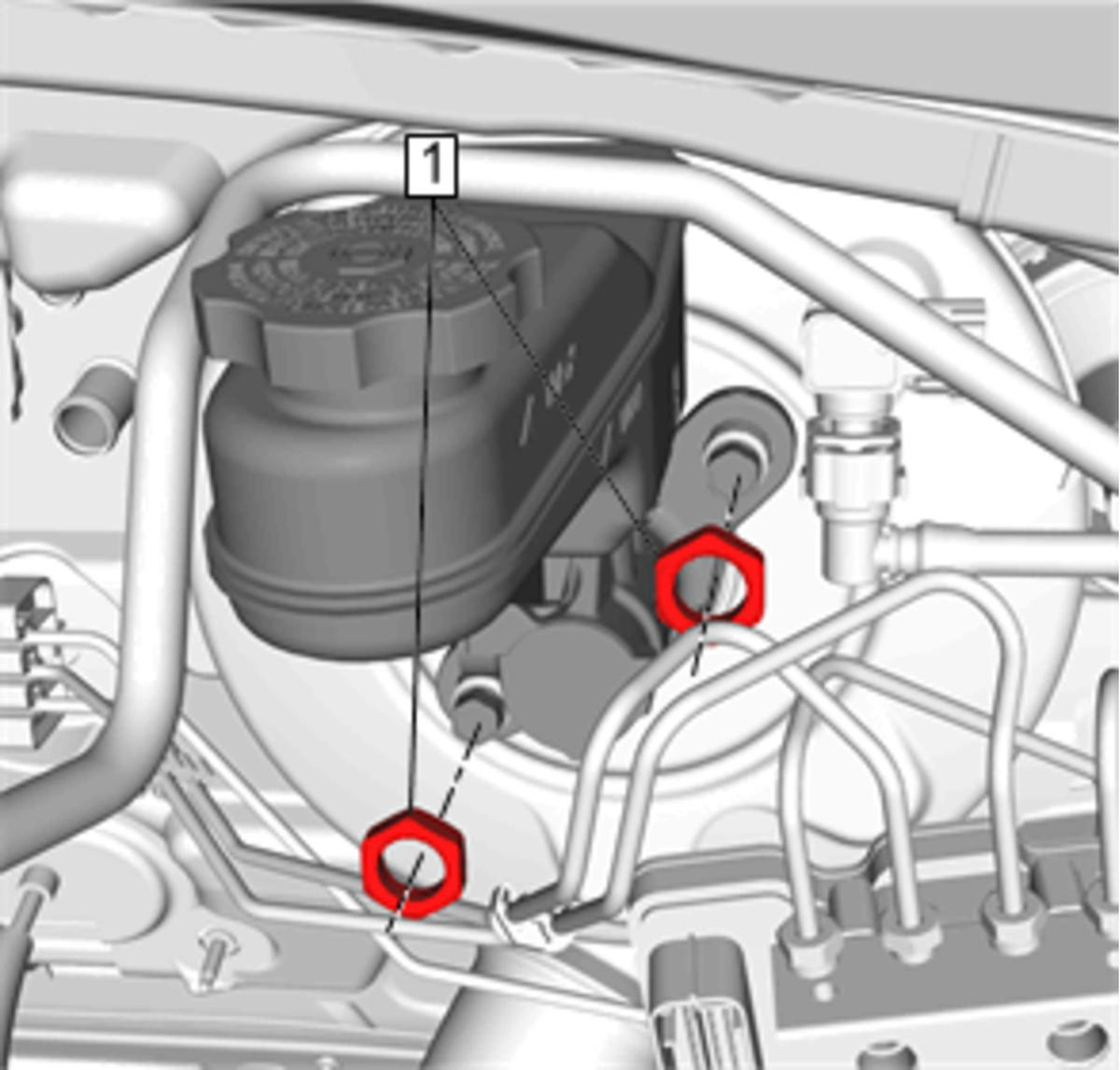

Master Cylinder Nut (1) - Install and tighten 55 N.m (41 lb ft) [2x]
Courtesy of GENERAL MOTORS COMPANY

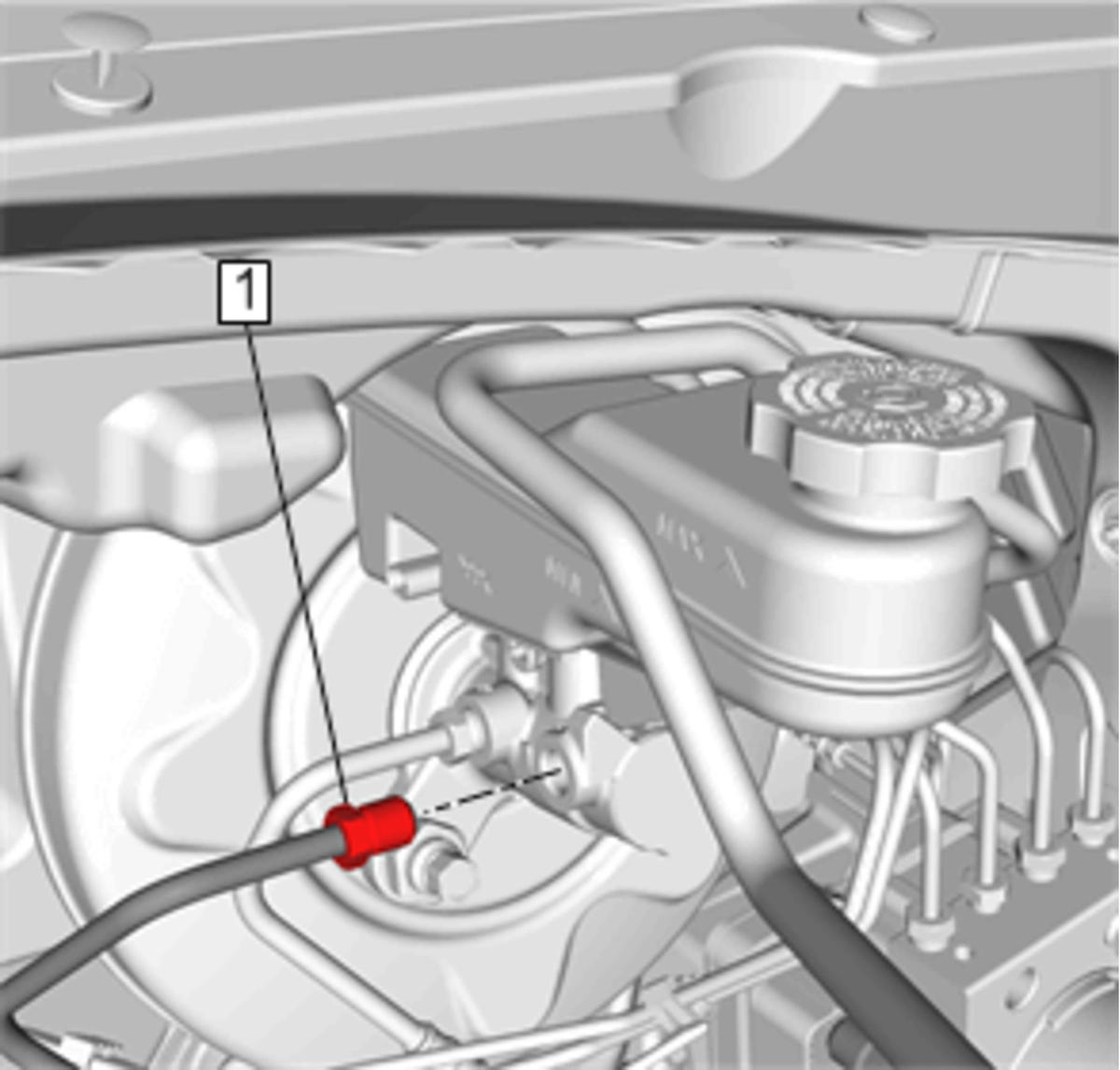

Master Cylinder Primary Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Master Cylinder Secondary Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Connect the brake fluid level sensor electrical connector.
Radiator Surge Tank Replacement - Install
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
