Installation Procedure

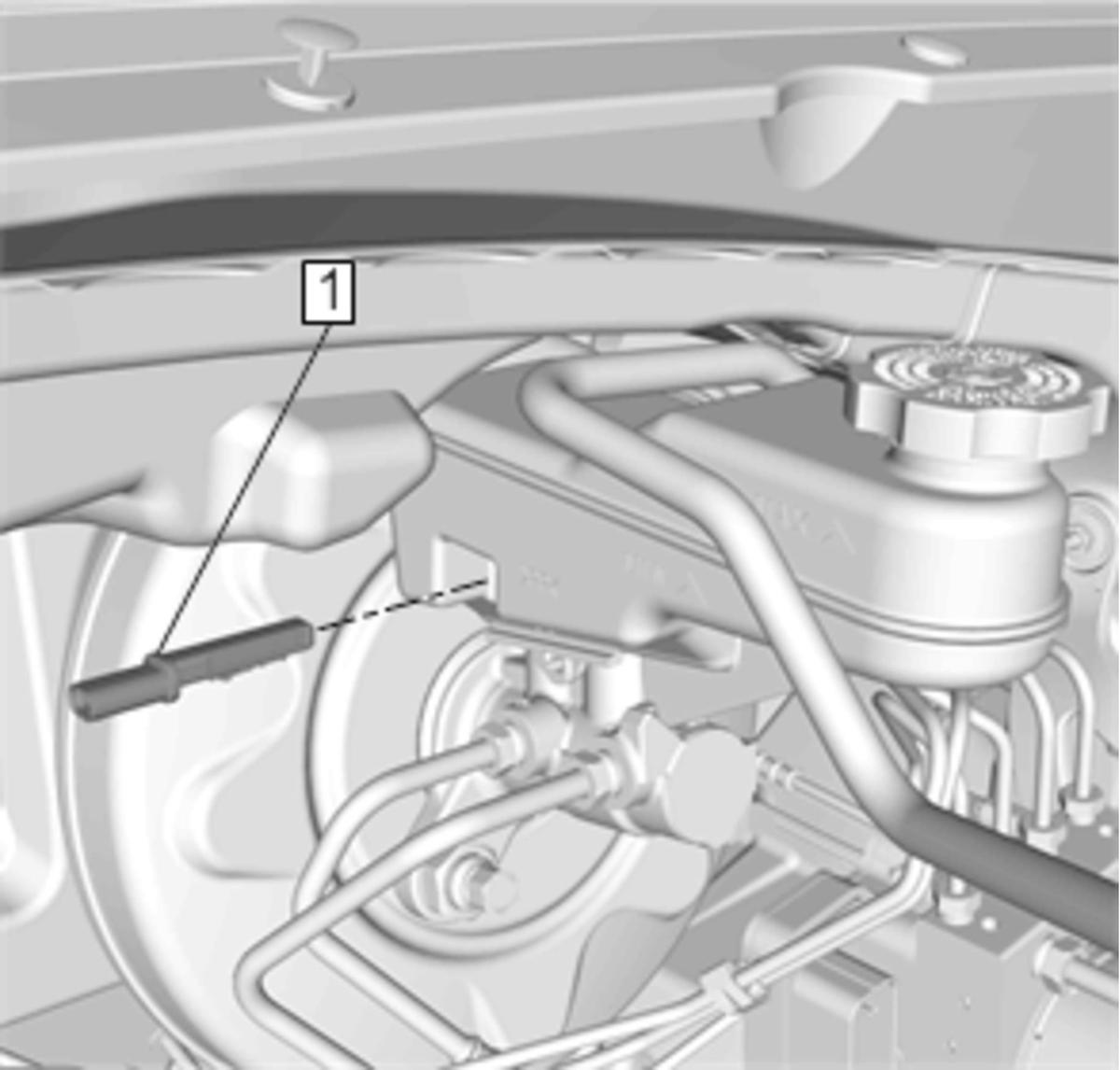

  1. GM4234167Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Sensor (1) - Install

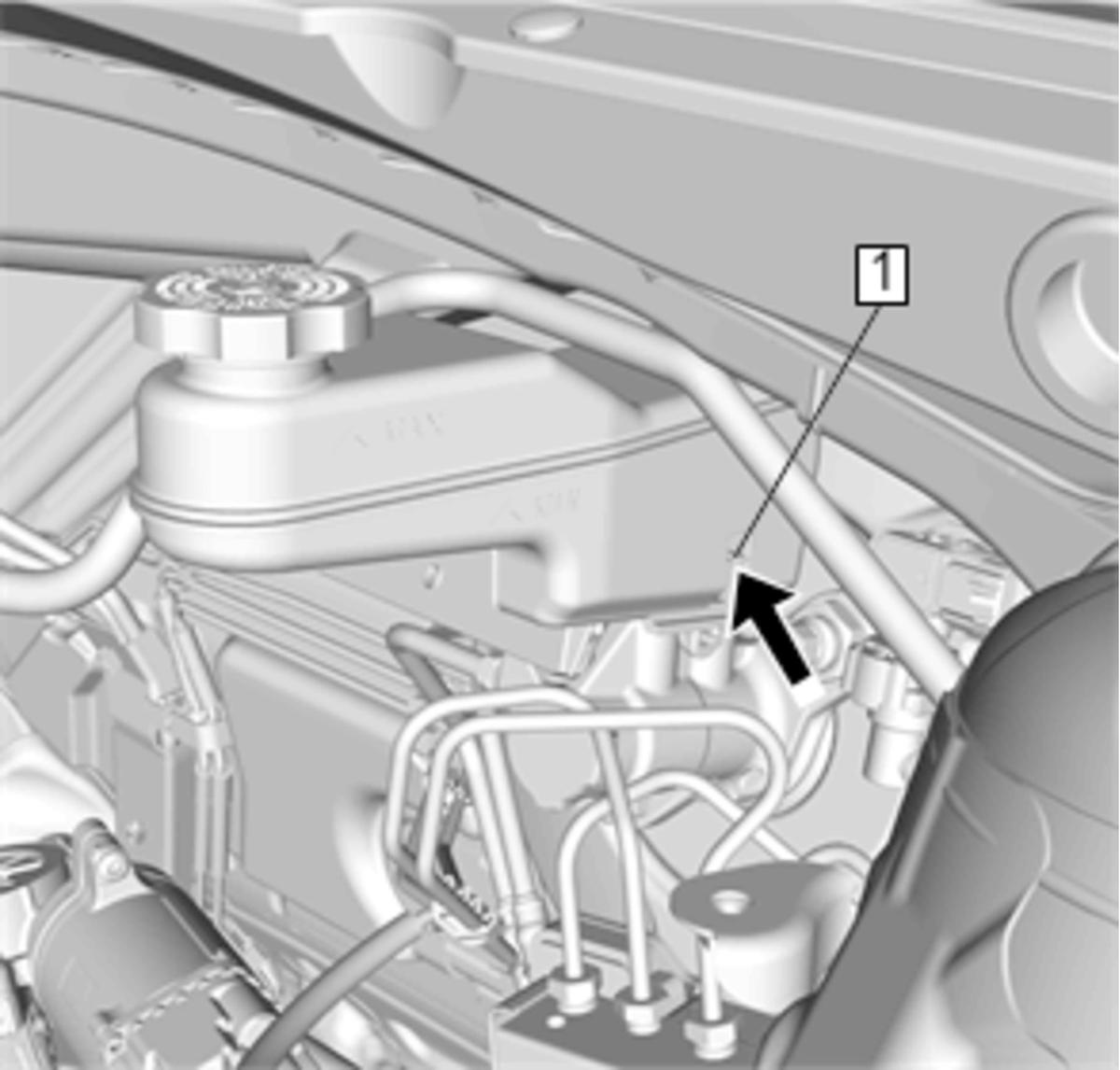

  2. GM4234161Courtesy of GENERAL MOTORS COMPANY

    Ensure the brake fluid level sensor locking tab (1) is fully engaged.

  3. Connect the brake fluid level sensor electrical connector.
  4. Radiator Surge Tank Replacement - Install
