Rear Brake Rotor Replacement

Preliminary Procedures

CAUTION:

Brake Caliper Supporting to Prevent Hose Damage Caution

NOTE:

Do NOT disconnect the brake hoses from the calipers.

1. Remove the brake caliper and support with heavy mechanics wire. Rear Brake Caliper Replacement (GNC) , or Rear Brake Caliper Replacement (GNQ)
2. Rear Disc Brake Pads Replacement (GNC) , or Rear Disc Brake Pads Replacement (GNQ)
3. Rear Brake Caliper Bracket Replacement (GNC) , or Rear Brake Caliper Bracket Replacement (GNQ)

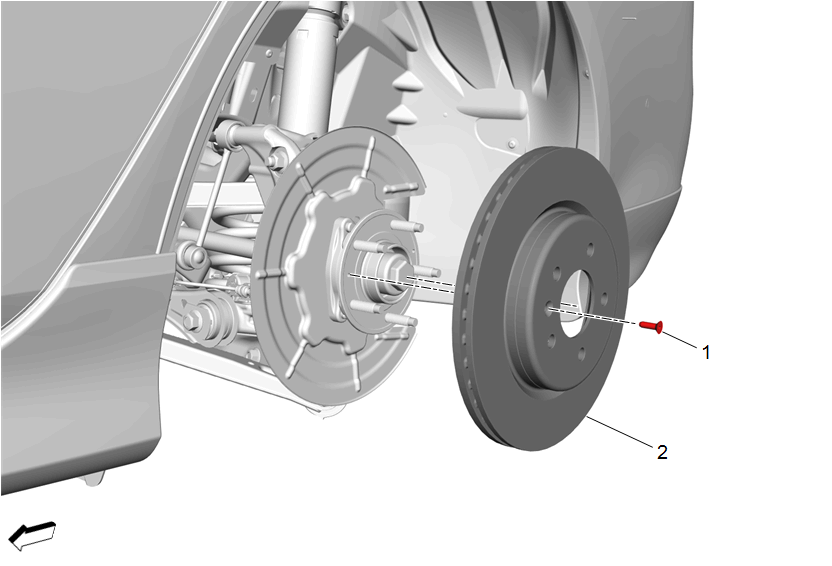

Procedure

1. Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminants should be cleaned from the hub/axle flange and the brake rotor mating surfaces.
2. Always replace brake rotors in axle sets. After brake rotor replacement it is essential to replace the brake pads in axle sets.
