Rear Tire Front Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

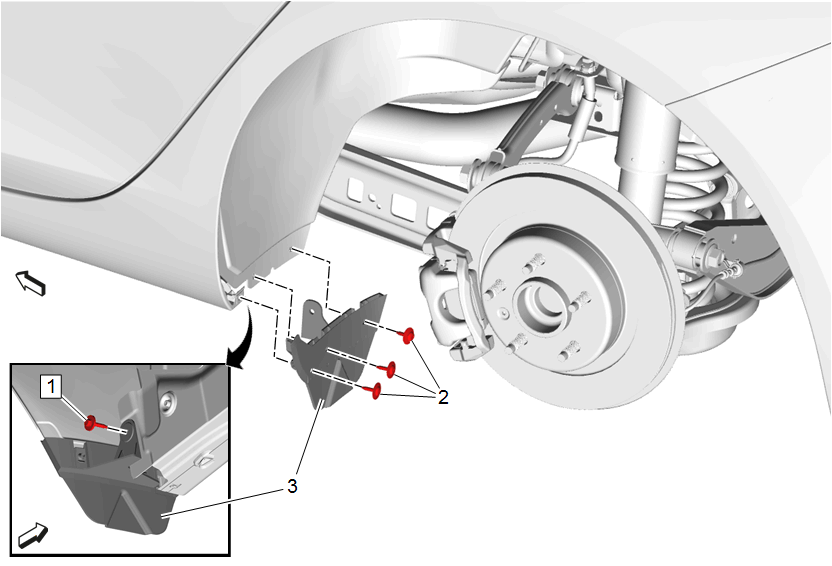

Callout	Component Name
Preliminary Procedure  Tire and Wheel Removal and Installation
1	Rear Tire Front Air Deflector Bolt CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Bolt [3x] Tighten  2.5 N.m (22 lb in)
3	Rear Tire Front Air Deflector
