Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster (1) Power Brake Booster Gasket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

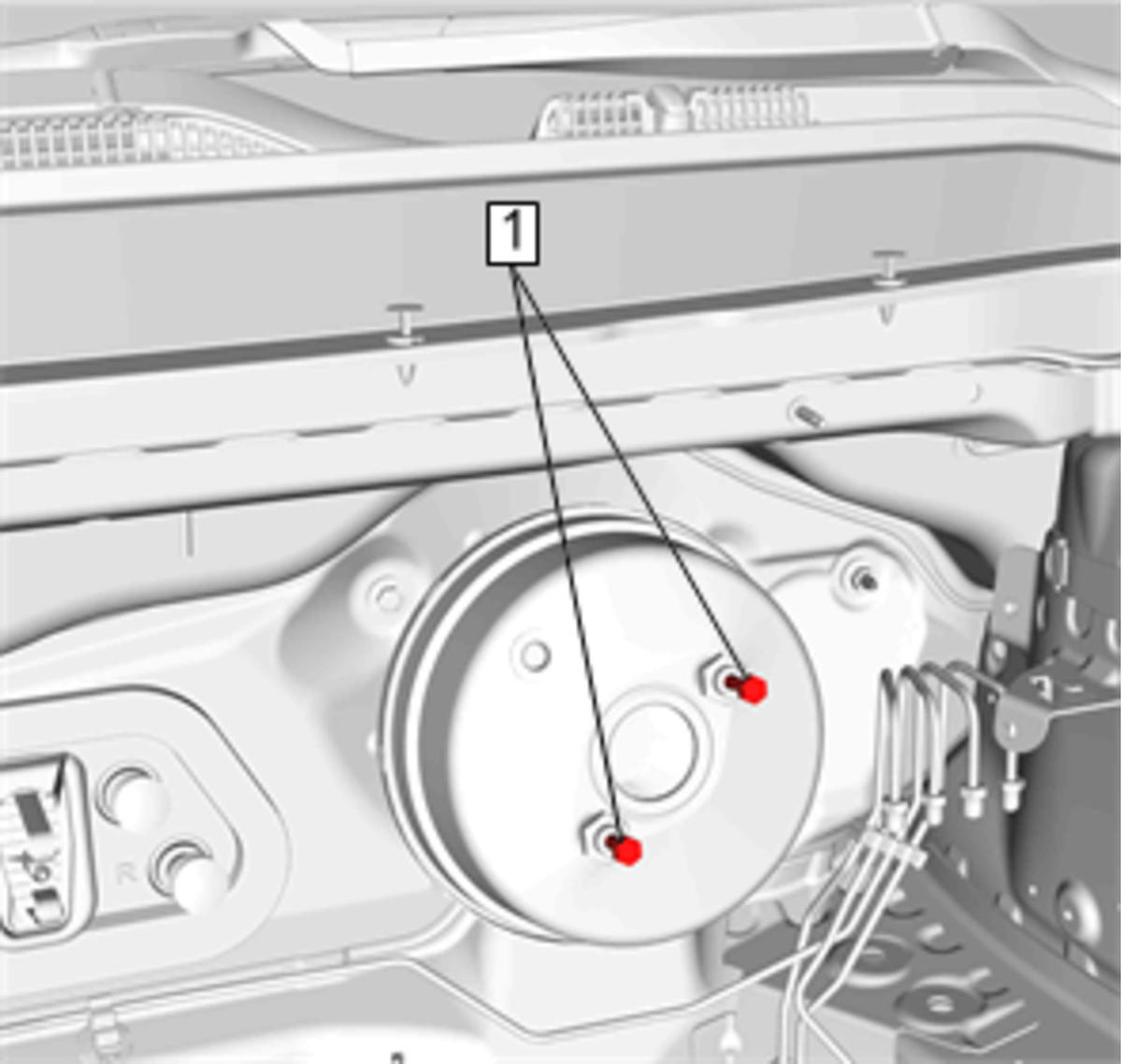

Power Brake Booster Bolt (1) - Tighten 19 N.m (14 lb ft) [2x]
Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement - Install
Brake Master Cylinder Replacement - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the power brake booster pushrod is fully seated in the brake pedal retainer.

Brake Pedal (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
A small amount of denatured alcohol may be used as a lubricant for assembly.

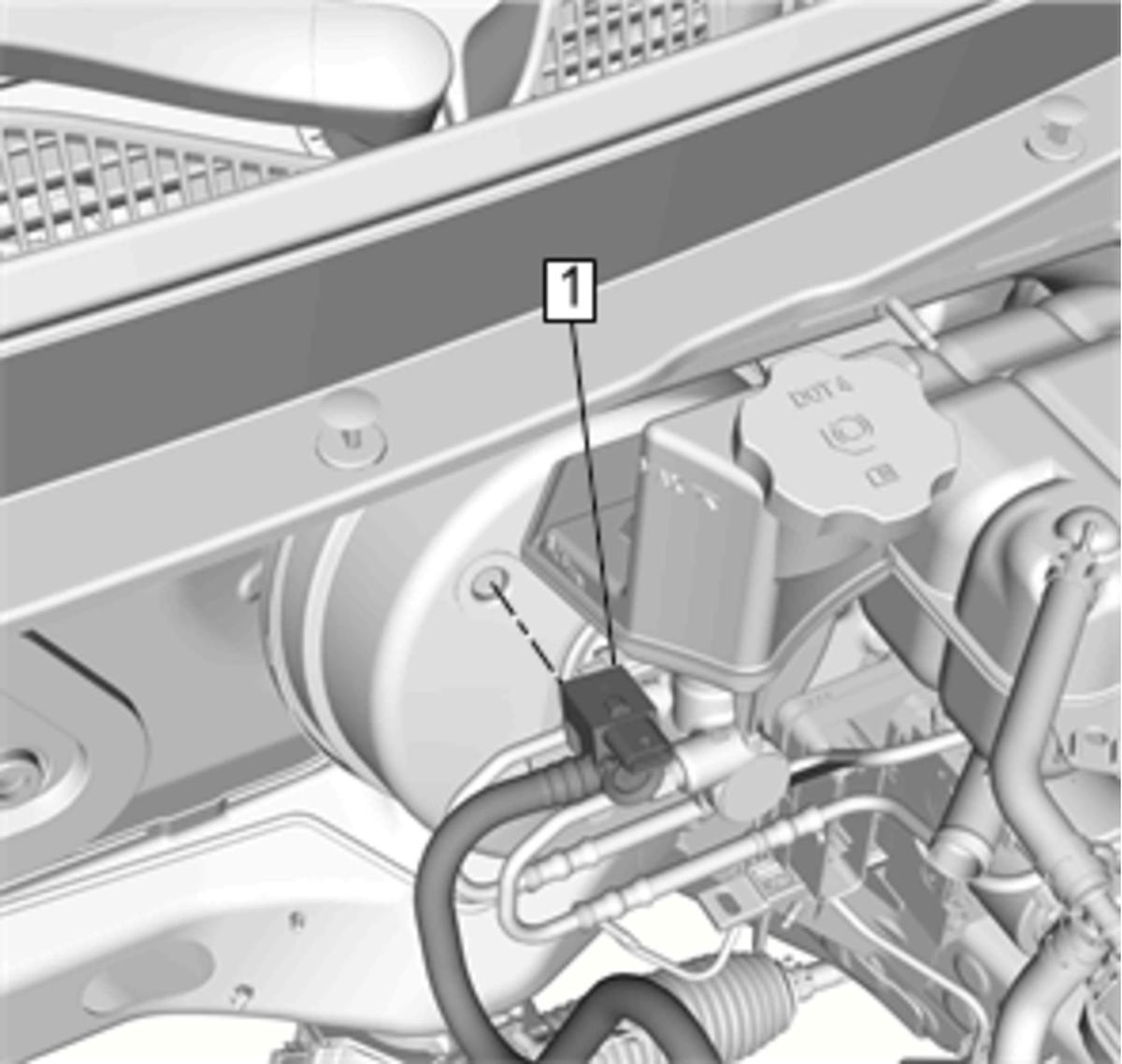

Power Brake Booster Vacuum Sensor (1) - Install
Power Brake Booster Vacuum Sensor Electrical Connector - Connect
