Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Clutch Pedal Bracket Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The clutch pedal bracket insulator must be correctly positioned to avoid interfering with the operation of the pedals.

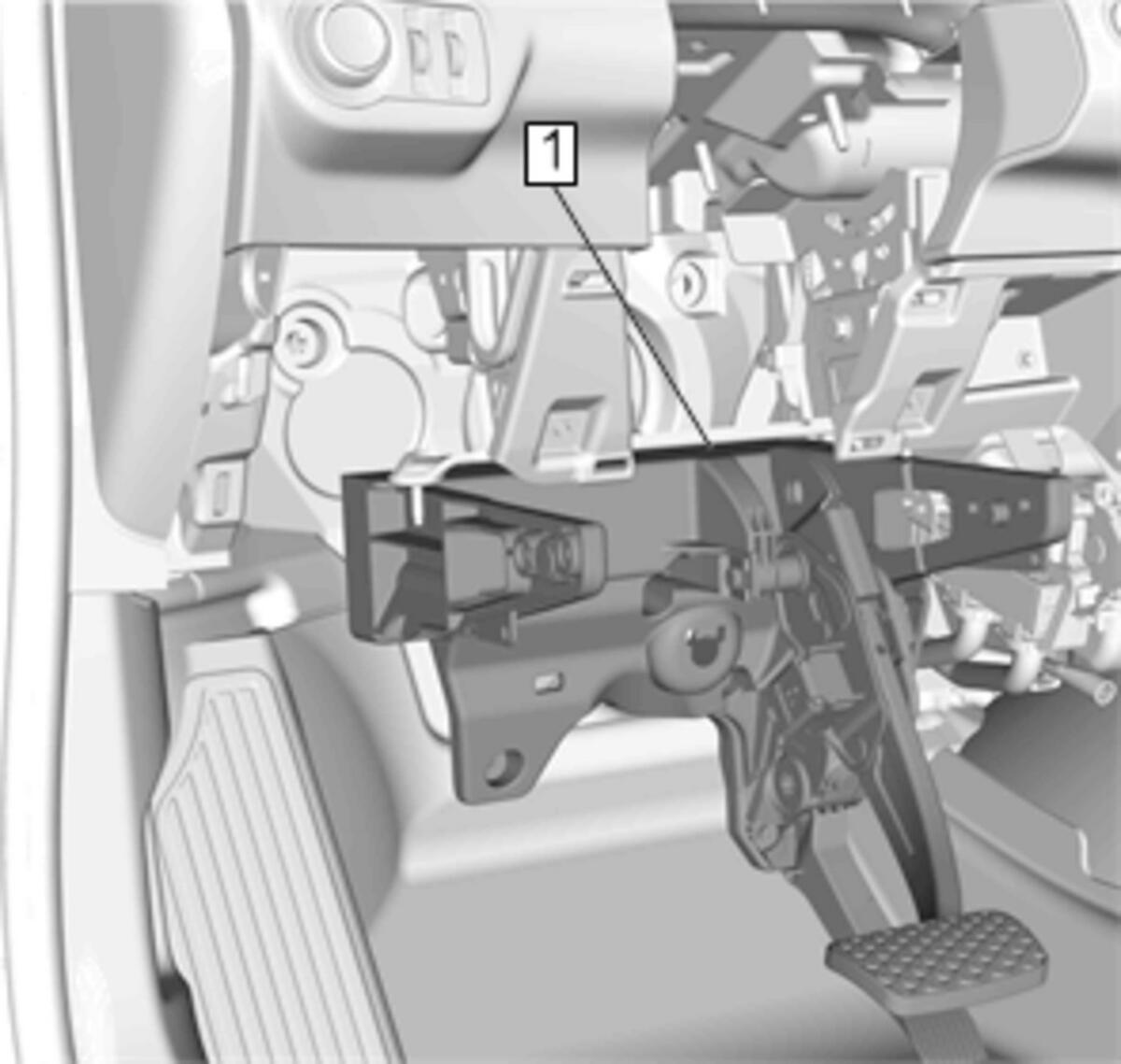

Brake and Accelerator Pedal Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Brake Pedal Assembly Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Assembly Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bracket Nut (1) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bracket Nut (1) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bracket Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Install the power brake booster.
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Bolt (1) - Tighten [2x] 19 N.m (14 lb ft)
Radiator Surge Tank Replacement - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the brake booster pushrod is fully seated in the brake pedal retainer.

Brake Pedal (1) - Connect
Brake Pedal Position Sensor Replacement - Install
Accelerator Pedal Position Sensor - Connect
Intermediate Steering Shaft Replacement - Install
Steering Column Replacement - Install
