Installation Procedure

BPMV Primary Brake Pipe - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

BPMV Primary Brake Pipe Fitting (1) - Install 25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

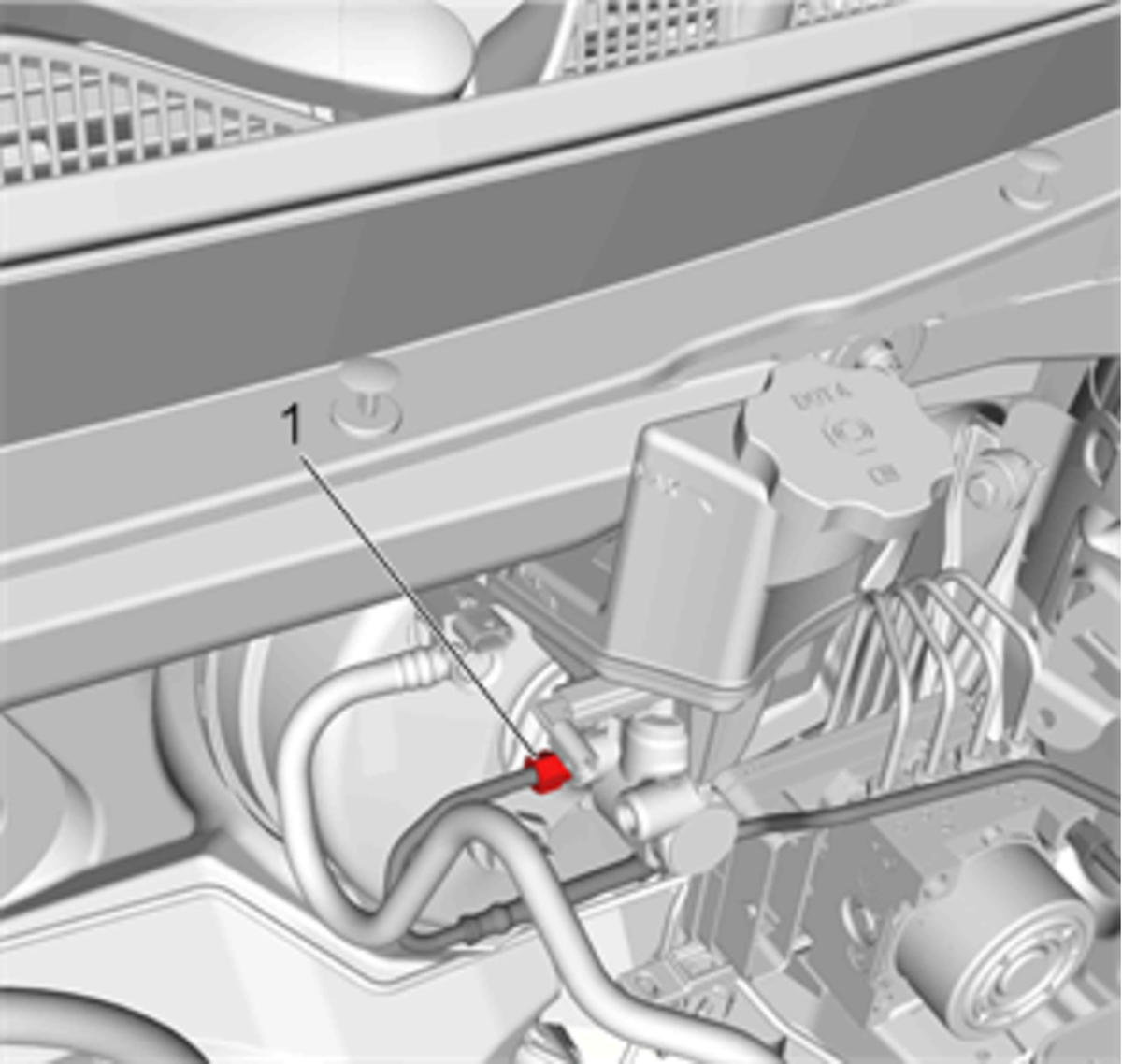

Master Cylinder Primary Brake Pipe Fitting (1) - Install 25 N.m (18 lb ft)
Install the radiator surge tank. Radiator Surge Tank Replacement
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , and Hydraulic Brake System Bleeding (Pressure)
