Rear Side Door Trim Replacement

Courtesy of GENERAL MOTORS COMPANY

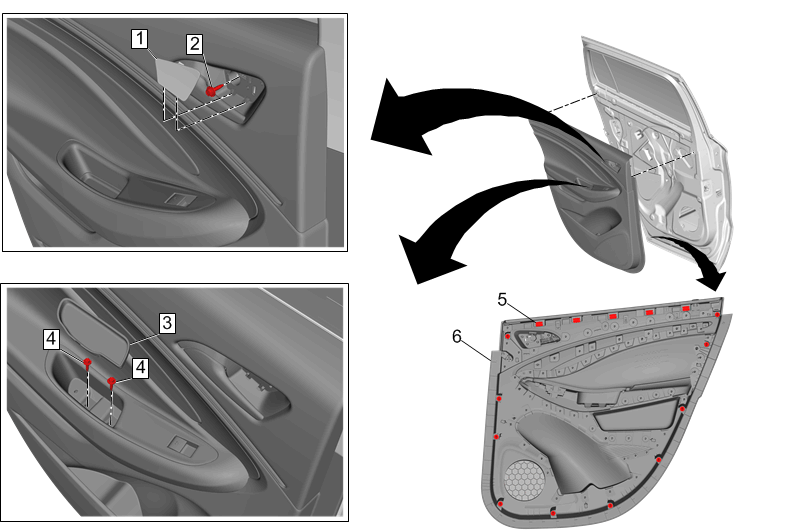

Callout	Component Name
1	Rear Side Door Inside Handle Bolt Cap Procedure Use a flat bladed plastic trim tool.
2	Rear Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Side Door Armrest Pull Cup Bolt Cap Procedure Use a flat bladed plastic trim tool.
4	Rear Side Door Armrest Pull Cup Fastener [2x] Tighten 2.5 N.m (22 lb in)
5	Rear Side Door Trim Belt Line Clip [5x]
6	Rear Side Door Trim Assembly Procedure Use an appropriate plastic trim tool to loosen the retainers on the door trim panel. Disconnect the electrical connector.
