Front Side Door Armrest Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

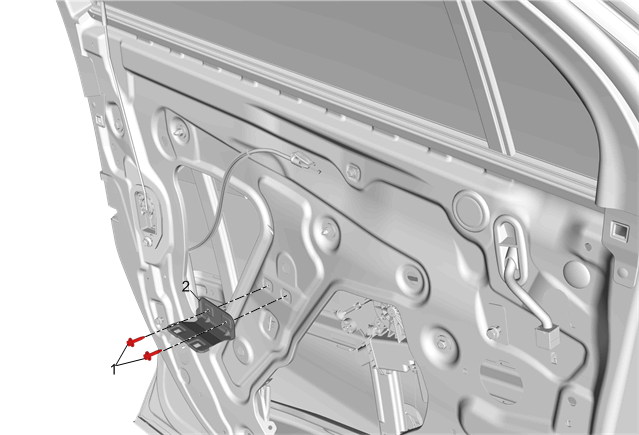

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement .
1	Front Side Door Armrest Bracket Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Side Door Armrest Bracket
