Hood Secondary Latch Release Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

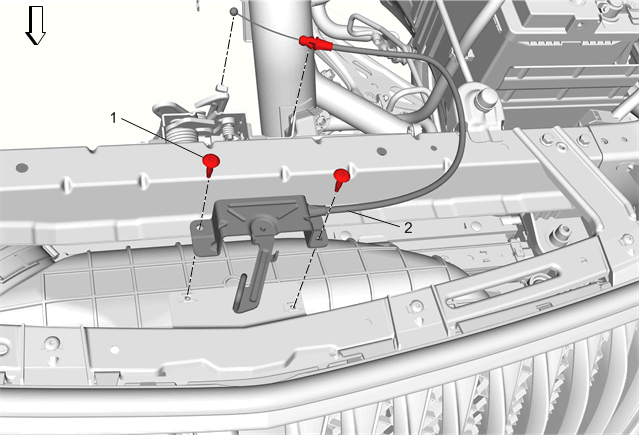

Callout	Component Name
Preliminary Procedures Front Compartment Front Sight Shield Replacement
1	Hood Secondary Latch Release Cable Bolts [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Hood Secondary Latch Release Cable Procedure Disconnect the release cable from the hood primary latch. Disconnect the hood secondary latch release cable retainer from the bracket. Align the hood secondary latch release cable latch if necessary.

Callout

Component Name

Hood Secondary Latch Release Cable Bolts [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Hood Secondary Latch Release Cable

Procedure
