Air Inlet Grille Panel Replacement

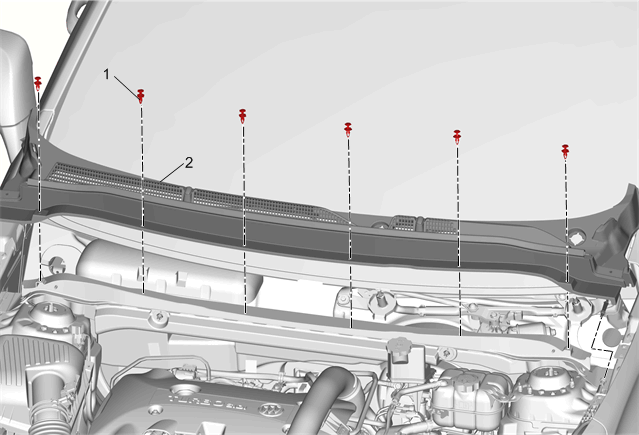

GM3903416Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Wiper Arm Replacement
  2. Air Inlet Grille Panel Extension Replacement
1 Air Inlet Grille Panel Retainer [6x]
2 Air Inlet Grille Panel

Procedure

  1. Disconnect the windshield washer hose connector.
  2. Using an appropriate tool, carefully release the air inlet grille panel rear edge upward from the windshield seal.
  3. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  4. Transfer components as necessary.
