Rear Side Door Rear Auxiliary Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

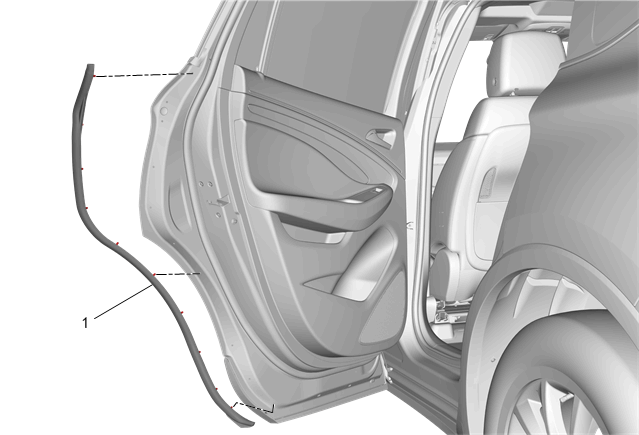

Callout
Component Name
Preliminary Procedure
Open the rear door.
1
Rear Side Door Rear Auxiliary Weatherstrip
Procedure
Using the appropriate tool, remove the weatherstrip retainers from the door flange.
Carefully pull the window weatherstrip from the door flange.
