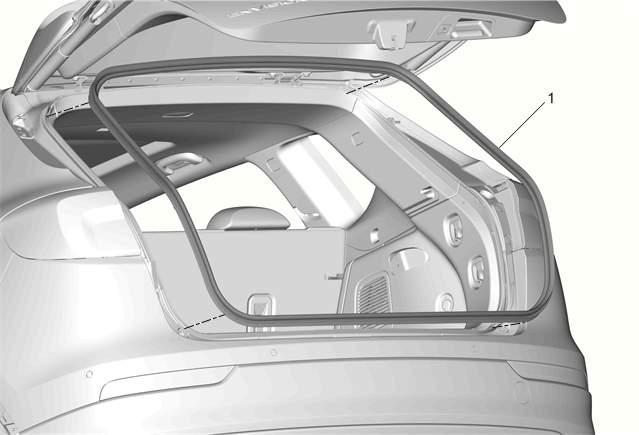

Rear Compartment LId Weatherstrip Procedure
- Start at the upper corner of the rear compartment opening and pull the weatherstrip away from the rear compartment opening flange.
- Position the weatherstrip to the upper corner of the rear compartment opening flange.
- Working downward along the flange, install the weatherstrip to the rear compartment opening flange ensuring that the weatherstrip is fully seated in the corners, using a rubber mallet.
|
