Front Side Door Lower Auxiliary Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Place both front and rear side doors in the full open position.

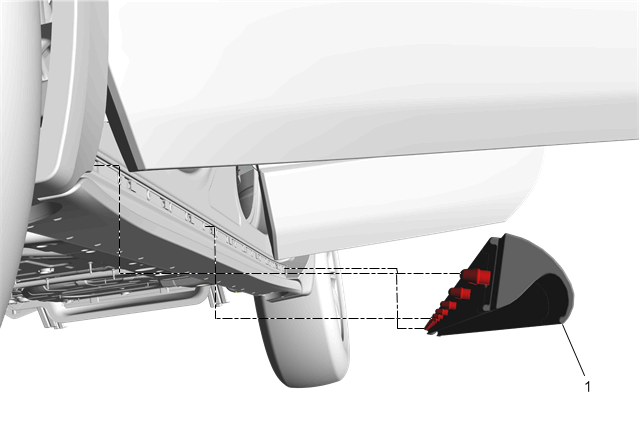

1	Front Side Door Lower Auxiliary Weatherstrip Procedure  Using the appropriate tool, remove the retainers and front side door lower auxiliary weatherstrip from the body side outer panel.
